Max pressure in operation(at 20℃):1.0Mpa
Operating temperature:0~200℃
1.The working pressure and temperature ranges vary for different sizes of the Male Connector Bore Through (MCBT).Please reer to the chart on the next page to ensure that the MCBT is used within the pressure and temperature limits corresponding to its size.
2.Do not apply any force to the piping of the Male Connector Bore Through other than the fluid pressure.
3.The nut of the Male Connector Bore Through should be avoided from being placed in(chemical)liquids.
4.When connecting the Ror NPT threaded end of the Male Connector Bore Through,please insert the tubefirst and then tighten it.(If tightenedfirst,it may be difficult to connect the tube.)

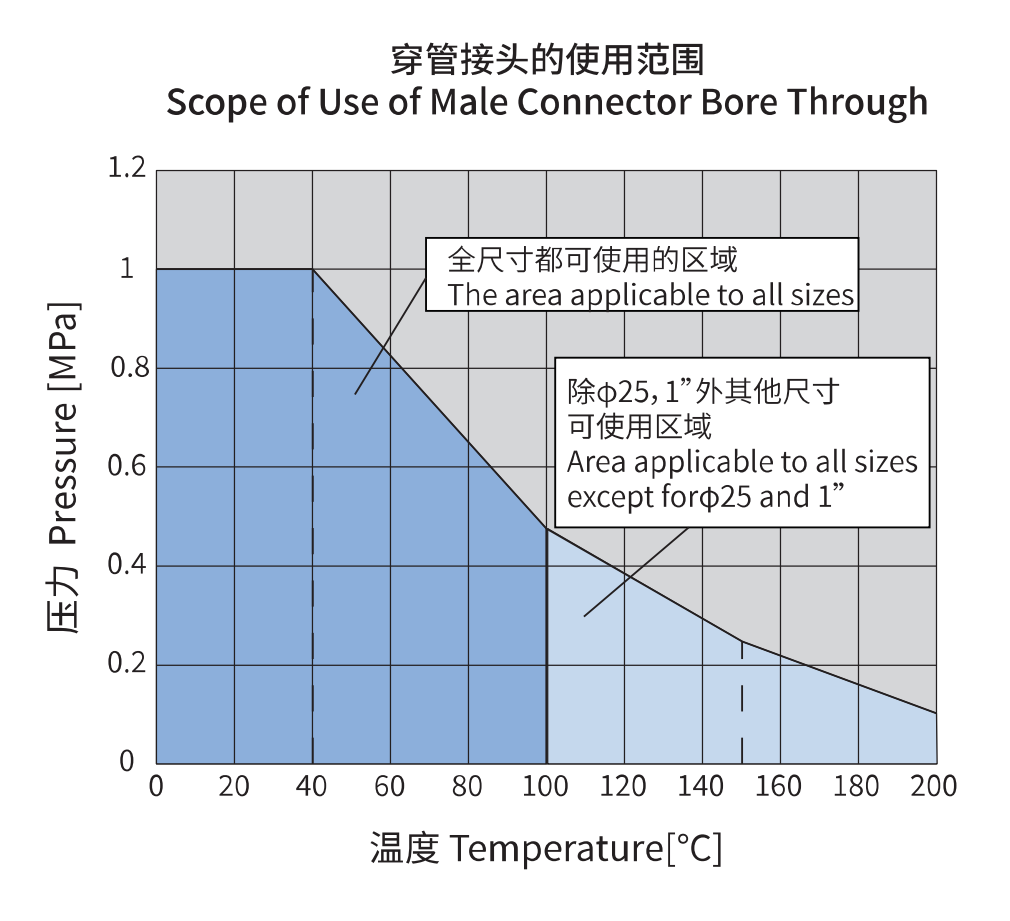

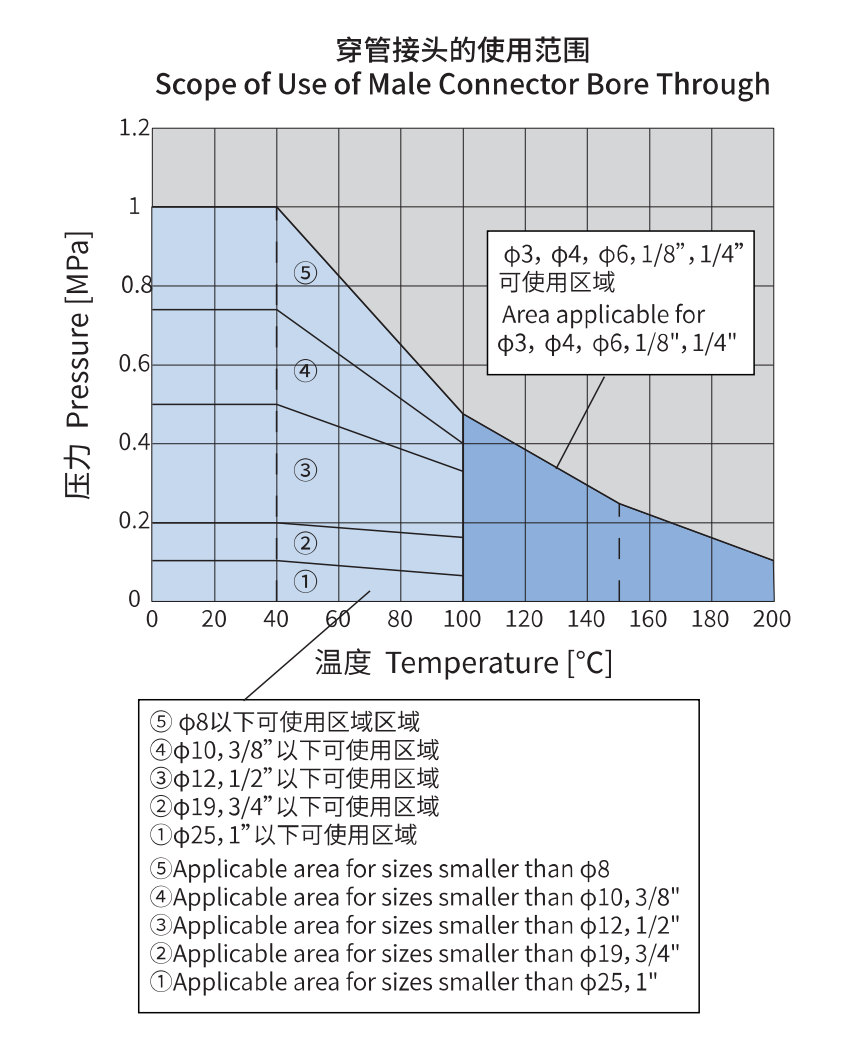

When using the Male Connector Bore Through,specific operation conditions must be taken into account.Different operation conditions result in different applicable temperature and pressure ranges for the fittings.Please refer to the chartA&Bon the next page for details.

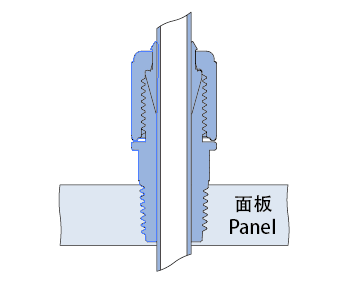

When the Male Connector Bore Through is used to pass through panels,walls,or similar obstacles.The tube go through the Male Connector Bore Through is located n an open environment,without any liquid or gas pressure.

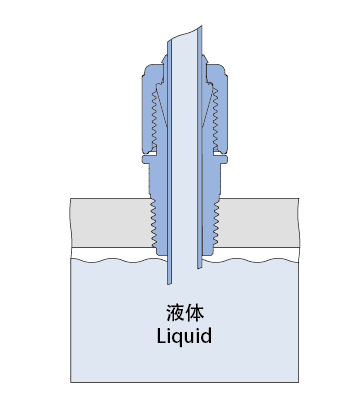

When the Male Connector Bore Through's thread-ed connection to the panel withstands pressure. The internalpressure and temperature of the tube go through the Male Connector Bore Through are the same as the liquid behind the panel.
