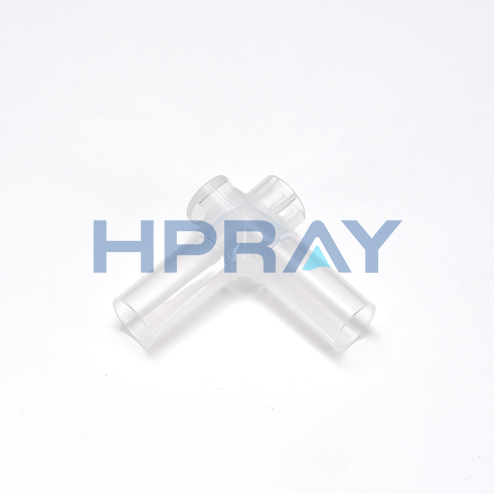

PFA Butt Fusion 90 Degree Elbow

D

d

L1

L2

BOSS

E

CWL-1/4"X1/4"

6.35

3.95

34.4

34.4

06.35

1.2

CWL-3/8*X1/4"

9.53/6.35

6.33/3.95

40.7

37.9

06.35/09.53

1.6/1.2

CWL-3/8"X3/8"

9.53

6.33

42.5

42.5

09.53

1.6

CWL-1/2"X1/4"

12.7/6.35

9.5/3.95

40.7

41.9

012.7/06.35

1.6/1.2

CWL-1/2"X1/2"

12.7

9.5

46.5

46.5

012.7

1.6

CWL-1/2"X3/8"

12.7/9.53

9.5/6.33

43.9

47.1

012.7/09.53

1.6

CWL-3/4"X3/4"

19

15.8

68.3

68.3

019

1.6

CWL-3/4"X1/2"

19/12.7

15.8/9.5

62.5

53.9

019/012.7

1.6

CWL-1"X1"

25.4

22.2

83.3

83.3

019

1.6

CWL-1"X3/4"

25.4/19

22.2/15.8

75.7

73.3

019

1.6

CWL-1"X1/2"

25.4/12.7

22.2/9.5

70.1

58.8

019/212.7

1.6

CWL-1-1/4"X1

31.8/25.4

28/222

90.2

86.6

019

1.9/1.6

CWL-1-1/4"X1-1/4"

31.8

28

96.6

96.6

019

1.9

CWL-1-1/2"X1-1/2

38.1

33.7

116.3

1163

019

2.2

D

d

L1

L2

E

BOSS

CPL-2"X2"

60.32

52.48

116.15

116.15

3.92

N/A
