Product Description

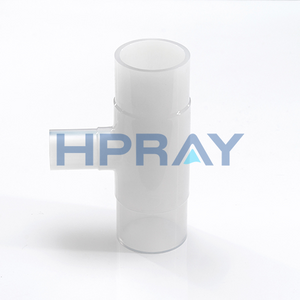

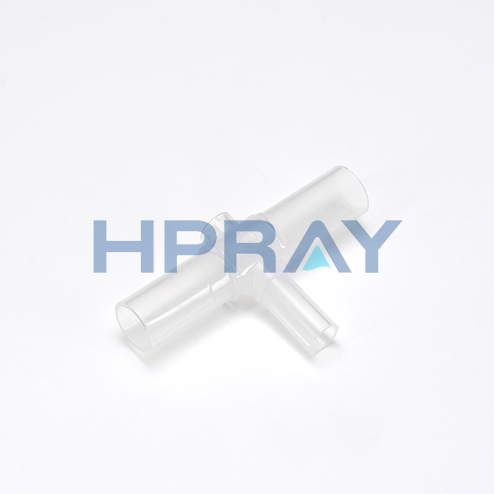

规格MODEL | 外形尺寸DIMENSIONS(mm) | |||||||
D | d | D1 | d1 | L1 | L2 | E | BOSS | |
CWT-1/4"X1/4"X1/4" | 6.35 | 3.95 | 6.35 | 3.95 | 51.40 | 34.40 | 1.20 | 06.35 |
CWT-3/8"X1/4"X3/8" | 9.53 | 6.33 | 6.35 | 3.95 | 62.40 | 37.70 | 1.6/1.2 | 09.53 |
CWT-3/8"X3/8"X3/8" | 9.53 | 6.33 | 9.53 | 6.33 | 63.90 | 42.00 | 1.60 | 09.53 |
CWT-1/2"×1/4"X1/2" | 12.70 | 9.50 | 6.35 | 3.95 | 62.80 | 42.00 | 1.6/1.2 | 06.35 |
CWT-1/2"X3/8"X1/2" | 12.70 | 9.50 | 9.53 | 6.33 | 66.40 | 46.50 | 1.60 | 09.53 |
CWT-1/2"Xi/2"Xi/2" | 12.70 | 9.50 | 12.70 | 9.50 | 69.5 | 47.10 | 1.60 | 012.7 |
CWT-1/2"X3/4"X1/2" | 12.70 | 9.50 | 19.00 | 15.80 | 80.00 | 62.80 | 1.60 | 019 |
CWT-3/4"X1/4"X3/4" | 19.00 | 15.80 | 6.35 | 3.95 | 91.00 | 50.00 | 1.6/1.2 | 06.35 |
CWT-3/4"X3/8"X3/4" | 19.00 | 15.80 | 9.53 | 6.33 | 94.40 | 54.90 | 1.60 | 09.53 |
CWT-3/4"×1/2"X3/4" | 19.00 | 15.80 | 12.70 | 9.50 | 93.70 | 55.20 | 1.60 | 012.7 |
CWT-3/4"X3/4"X3/4" | 19.00 | 15.80 | 19.00 | 15.80 | 100.00 | 67.80 | 1.60 | 019 |
CWT-3/4"X3/4"X1/2" | 12.70 | 950 | 19.00 | 15.80 | 95.00 | 68.50 | 1.60 | 019 |
CWT-1"x1/4xl" | 25.40 | 22.20 | 6.35 | 3.95 | 111.40 | 55.20 | 1.6/1.2 | 06.35 |
CWT-1"X1/2"X1" | 25.40 | 22.20 | 12.70 | 9.53 | 108.70 | 59.00 | 1.60 | 012.7 |
CWT-1"X3/4"X1 | 25.40 | 22.20 | 19.00 | 15.80 | 117.50 | 73.40 | 1.60 | 019 |
CWT-1"X1"X1" | 25.40 | 22.20 | 25.40 | 22.20 | 124.00 | 84.00 | 1.60 | 019 |
CWT-1-1/4" | 31.80 | 28.00 | 31.80 | 28.00 | 149.00 | 74.50 | 1.90 | 019 |
CWT-1-1/4"XI"X1-1/4" | 31.80 | 28.00 | 25.40 | 22.20 | 141.60 | 86.00 | 1.9/1.6 | 019 |
CWT-1-1/2'x1-1/2"x1-1/2" | 38.10 | 33.70 | 38.10 | 33.70 | 184.00 | 117.50 | 2.20 | 019 |

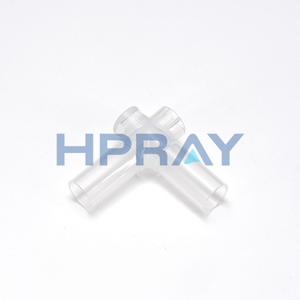

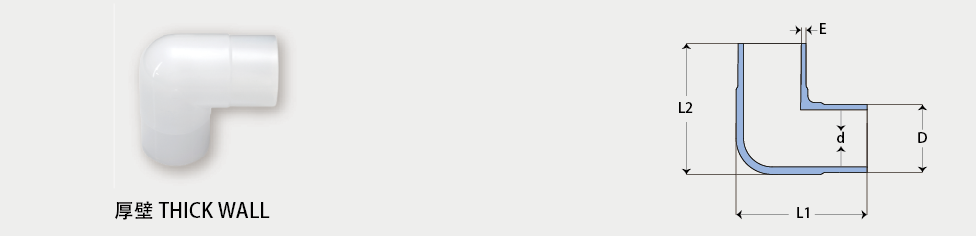

规格 MODEL | 外形尺寸DIMENSIONS(mm) | |||||
D | d | L1 | L2 | BOSS | E | |
CWL-1/4"X1/4" | 6.35 | 3.95 | 34.4 | 34.4 | 06.35 | 1.2 |
CWL-3/8*X1/4" | 9.53/6.35 | 6.33/3.95 | 40.7 | 37.9 | 06.35/09.53 | 1.6/1.2 |
CWL-3/8"X3/8" | 9.53 | 6.33 | 42.5 | 42.5 | 09.53 | 1.6 |
CWL-1/2"X1/4" | 12.7/6.35 | 9.5/3.95 | 40.7 | 41.9 | 012.7/06.35 | 1.6/1.2 |
CWL-1/2"X1/2" | 12.7 | 9.5 | 46.5 | 46.5 | 012.7 | 1.6 |
CWL-1/2"X3/8" | 12.7/9.53 | 9.5/6.33 | 43.9 | 47.1 | 012.7/09.53 | 1.6 |
CWL-3/4"X3/4" | 19 | 15.8 | 68.3 | 68.3 | 019 | 1.6 |
CWL-3/4"X1/2" | 19/12.7 | 15.8/9.5 | 62.5 | 53.9 | 019/012.7 | 1.6 |
CWL-1"X1" | 25.4 | 22.2 | 83.3 | 83.3 | 019 | 1.6 |
CWL-1"X3/4" | 25.4/19 | 22.2/15.8 | 75.7 | 73.3 | 019 | 1.6 |
CWL-1"X1/2" | 25.4/12.7 | 22.2/9.5 | 70.1 | 58.8 | 019/212.7 | 1.6 |
CWL-1-1/4"X1 | 31.8/25.4 | 28/222 | 90.2 | 86.6 | 019 | 1.9/1.6 |
CWL-1-1/4"X1-1/4" | 31.8 | 28 | 96.6 | 96.6 | 019 | 1.9 |
CWL-1-1/2"X1-1/2 | 38.1 | 33.7 | 116.3 | 1163 | 019 | 2.2 |
规格MODEL | 外形尺寸DIMENSIONS(mm) | |||||
D | d | L1 | L2 | E | BOSS | |
CPL-2"X2" | 60.32 | 52.48 | 116.15 | 116.15 | 3.92 | N/A |
