Product Description
| 项目ITEM | 参数信息PARAMETERINFORMATION | |
| 使用介质Media | 化学液体纯水空气氮气Chemical Solution,Pure water,Air,Nitrogen | |
| 介质温度Media Temperature | 5-120℃,含氢氟酸在Contains Hydrofluoric Acid:5-80℃ | |
| 驱动方式Actuation Method | 手动Manual | |
| 配管规格Tube Size | 3/8" | |
| 配管通径Tube Internal Diameter(mm) | φ6.4 | |
| CV值CVValue | 0.64 | |
| 环境温度Ambient Temperature | 0-60℃ | |
| 安装方式Mounting Method | 底面安装/双孔安装Bottom Mounting/2-Hole Mounting | |
| 结构耐压Structure Pressure Resistance | 1Mpa | |

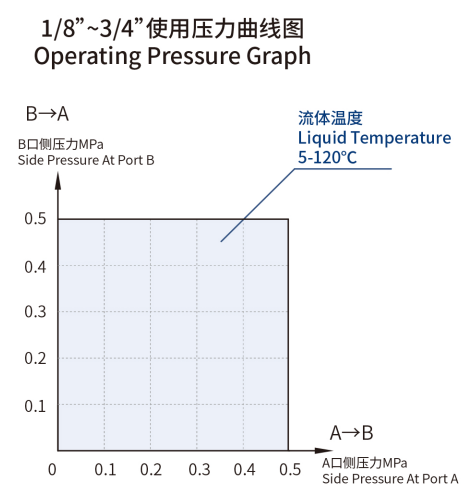

| 使用压力A→BOperating Pressure(A→B) | 0-0.5Mpa | |
| 使用压力B→AOperating Pressure(B→A) | 0-0.5Mpa | |
| 阀座泄漏Valve Seat Leakage | Ocm³/min水压Water Pressure | |
| 金属零部件材质Material of Metal Parts | SUS316(表面喷涂铁氟龙PTFE Surface Coating) | |
| O形圈材质O-ring Material | EPDM/FPM | |
| 阀体材质Valve Body Material | PFA | |
| 执行器材质Actuator Material | PVDF | |
| 膜片材质Diaphragm Material | PTFE | |
| 底座材质Mounting Base Material | PVDF | |

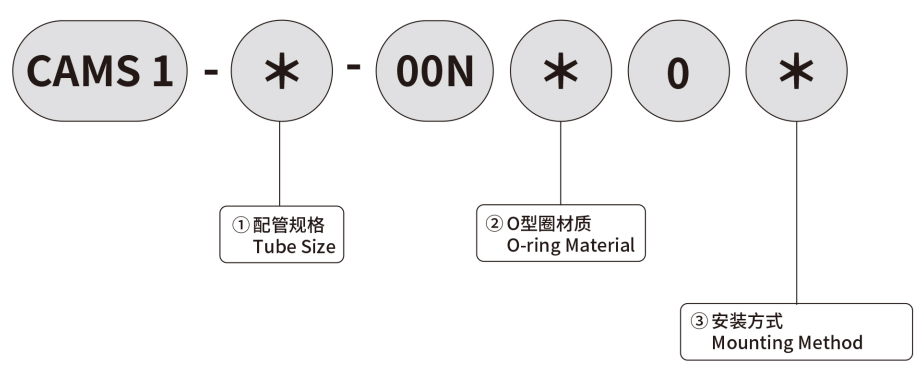

| ①配管规格(外径x内径)TubeSize(ODxID) | ||
| 3/8"(9.53x6.35) | ||
| ②0型圈材质O-ring Material | |||
| E | EPDM | ||
| F | FPM | ||

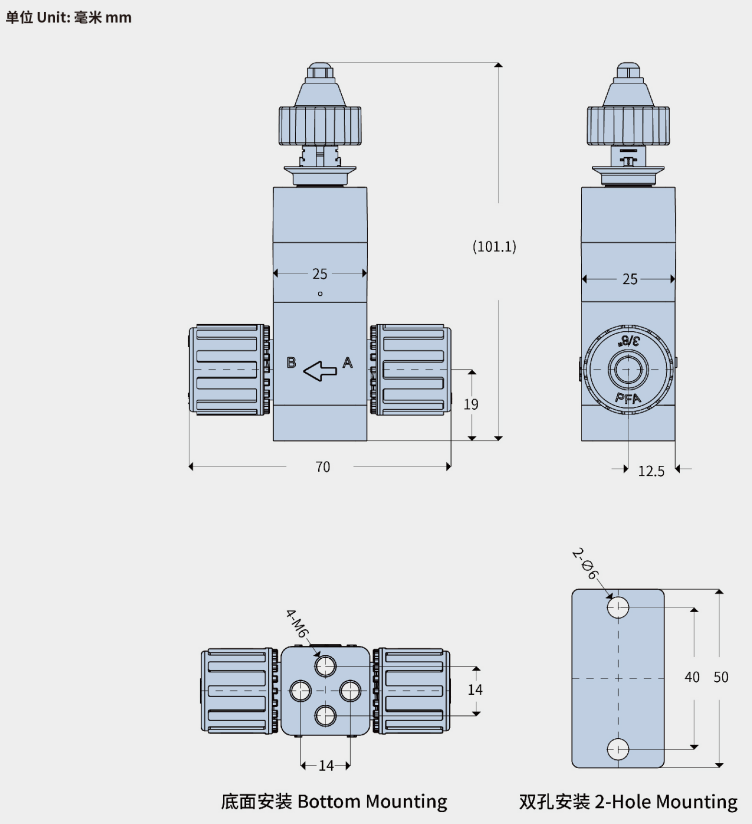

| ③安装方式Mounting Method | |||
| K | 底面安装 Bottom Mounting | ||
| H | 双孔安装 2-Hole Mounting | ||
