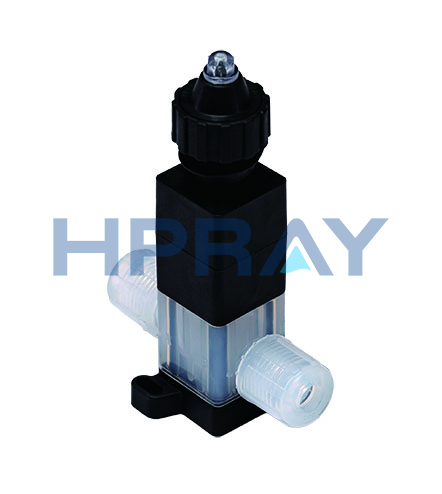

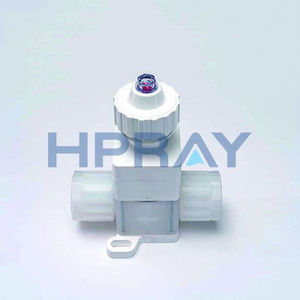

Product Description
| 项目ITEM | 参数信息PARAMETER INFORMATION | ||||||
| 使用介质Media | 化学液体、纯水、空气、氮气Chemical Solution,Pure water,Air,Nitrogen | ||||||
| 介质温度Media Temperature | 5-200℃ | ||||||
| 驱动方式Actuation Method | 手动Manual | ||||||
| 配管规格Tube Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | |
| 配管通径Tube Internal Diameter(mm) | φ2.2 | 中3.95 | 中6.4 | φ9.5 | φ15.8 | φ22.2 | |
| CV值CVValue | 0.1 | 0.34 | 0.64 | 1.8 | 5 | 8 | |
| 环境温度Ambient Temperature | 0-60℃ | ||||||
| 安装方式Mounting Method | 法兰式安装/底面安装/四孔安装Flange Mounting/Bottom Mounting/4-Hole Mounting | ||||||
| 结构耐压Structure Pressure Resistance | 0.6Mpa | ||||||

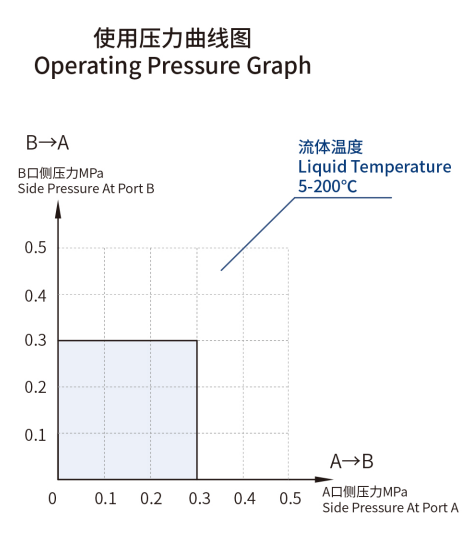

| 使用压力A→B Operating Pressure(A→B) | 0-0.3Mpa | ||||||
| 使用压力B→AOperating Pressure(B→A) | 0-0.3Mpa | ||||||
| 阀座泄漏Valve Seat Leakage | 0cm³/min水压Water Pressure | ||||||
| 金属零部件材质Material of Metal Parts | SUS316(表面喷涂铁氟龙PTFE Surface Coating) | ||||||
| O形圈材质O-ring Material | FPM | ||||||
| 阀体材质Valve Body Material | PFA | ||||||
| 执行器材质Actuator Material | 改性塑料Modified Plastics | ||||||
| 膜片材质Diaphragm Material | PTFE | ||||||
| 底座材质Mounting Base Material | 改性塑料Modified Plastics | ||||||

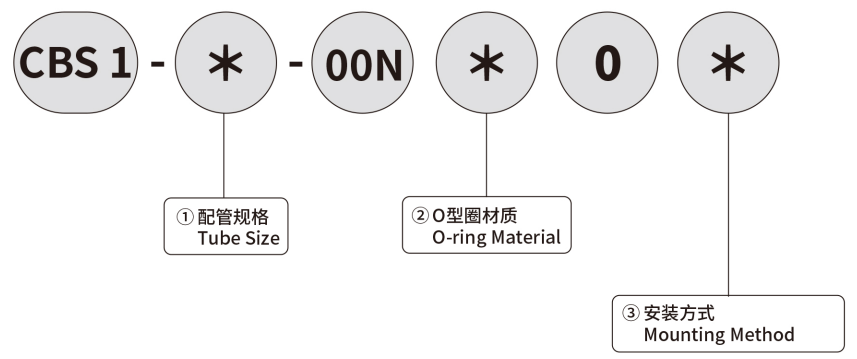

| ①配管规格(外径x内径)Tube Size(ODxID) | ||
| 1/8"(3.18x2.18) | 1/4"(6.35x3.95) | |
| 3/8"(9.53x6.35) | 1/2"(12.7x9.5) | |
| 3/4"(19x15.8) | 1"(25.4x22.2) | |
| ②0型圈材质O-ring Material | ||
| F | FPM | |
| ③安装方式Mounting Method | ||
| U | 法兰安装Flange Mounting | |
| K | 底面安装Bottom Mounting | |
| H | 四孔安装4-Hole Mounting | |
| 规格 Size | 外形尺寸Dimensions(mm) | ||||||||||||||||||
| 通用尺寸Common Dimensions | 法兰安装Flange Mounting | 底面安装Bottom Mounting | 四孔安装4-Hole Mounting | ||||||||||||||||
| A | B | L | H | h1 | B1 | C1 | C2 | C3 | L1 | b1 | C4 | C5 | L2 | d | C6 | C7 | L3 | D | |
| 1/8" | 220 | 22.0 | 45.2 | 94.5 | 17.0 | 11.0 | 30.0 | 16.5 | 4.5 | 36.0 | 3.5 | 14.0 | 14.0 | 22.0 | 5.0 | N/A | 40.0 | 50.0 | 4.5 |
| 1/4" | 22.0 | 22.0 | 58.6 | 94.5 | 17.0 | 11.0 | 30.0 | 16.5 | 4.5 | 36.0 | 3.5 | 14.0 | 14.0 | 22.0 | 5.0 | N/A | 40.0 | 50.0 | 4.5 |
| 3/8" | 36.0 | 36.0 | 80.6 | 112.2 | 21.0 | 17.0 | 50.0 | 36.0 | 8.0 | 62.0 | 7.0 | 22.0 | 22.0 | 36.0 | 6.0 | 22.0 | 50.0 | 62.0 | 6.5 |
| 1/2" | 36.0 | 36.0 | 85.6 | 112.2 | 21.0 | 17.0 | 50.0 | 36.0 | 8.0 | 62.0 | 7.0 | 22.0 | 22.0 | 36.0 | 6.0 | 22.0 | 50.0 | 62.0 | 6.5 |
| 3/4" | 46.0 | 46.0 | 121.3 | 132.8 | 27.0 | 23.0 | 64.0 | 39.0 | 11.0 | 82.0 | 9.0 | 28.0 | 28.0 | 46.0 | 8.0 | 32.0 | 64.0 | 76.0 | 7.0 |
| 1" | 60.0 | 60.0 | 144.6 | 178.0 | 35.0 | 30.0 | 78.0 | 50.0 | 11.0 | 97.0 | 9.0 | 40.0 | 40.0 | 60.0 | 8.0 | 48.0 | 84.0 | 96.0 | 7.0 |
