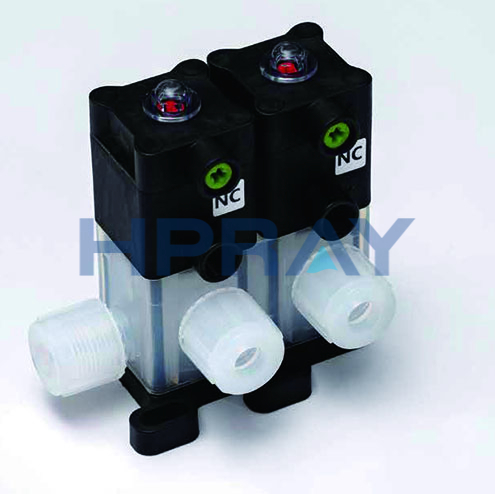

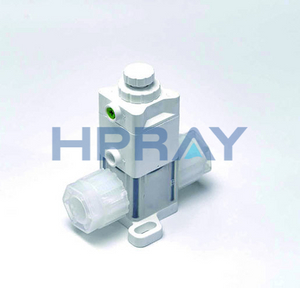

Product Description
| 项目ITEM | 参数信息PARAMETERINFORMATION | ||||||||
| 使用介质Media | 化学液体、纯水、空气、氮气Chemical Solution,Pure water,Air,Nitrogen | ||||||||
| 介质温度Media Temperature | 5-200℃ | ||||||||
| 气动方式Pneumatic Method | 常开/常闭Normal Close/Normal Open | ||||||||
| 配管规格Tube Size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | ||||
| 配管通径Tube Internal Diameter(mm) | φ3.95 | 中6.4 | φ9.5 | φ15.8 | φ22.2 | ||||
| 开关频率Frequency of Opening and Closing | 30次/分钟Times/Minute | 20次/分钟Times/Minute | |||||||
| CV值CVValue | 0.34 | 0.64 | 1.8 | 5 | 8 | ||||
| 环境温度Ambient Temperature | 0-60℃(带传感器时0-50℃) | ||||||||
| 安装方式Mounting Method | 法兰式安装/底面安装Flange/Bottom Mounting | ||||||||
| 结构耐压Structure Pressure Resistance | 0.6Mpa | ||||||||

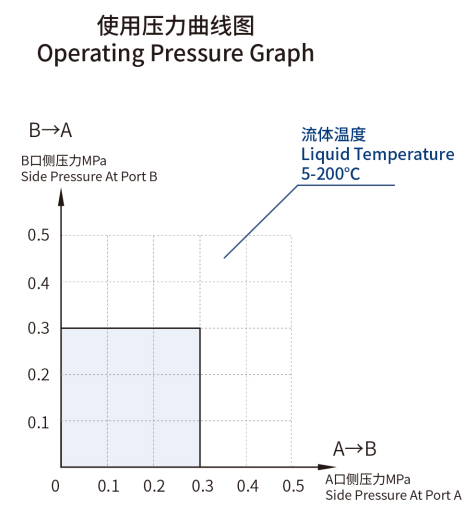

| 使用压力A→BOperating Pressure(A→B) | 0-0.3Mpa | ||||||||
| 使用压力B→A Operating Pressure(B→A) | 0-0.3Mpa | ||||||||
| 阀座泄漏Valve Seat Leakage | Ocm³/min水压Water Pressure | ||||||||
| 执行器控制口Piloting Port | RC1/8"(使用控制口NC:Y口， NO:X口双作用： X、Y口) (Corresponding Control Port:NC:PortY,NO PortX,Dual Action:X,Y Port) | ||||||||
| 控制口压力Piloting Port Pressure | 0.4-0.5Mpa | ||||||||
| 金属零部件材质Material of Metal Parts | SUS316(表面喷涂铁氟龙PTFE Surface Coating) | ||||||||
| O形圈材质O-ring Material | FPM | ||||||||
| 阀体材质Valve Body Material | PFA | ||||||||
| 执行器材质Actuator Material | 改性塑料Modified Plastics | ||||||||
| 膜片材质Diaphragm Material | PTFE | ||||||||
| 底座材质Mounting Base Material | 改性塑料Modified Plastics | ||||||||
| 调节螺栓材质Material of Adjustment Bolt | 改性塑料Modified Plastics | ||||||||
| 调节螺母材质Material of Adjustment Nut | 改性塑料Modified Plastics | ||||||||
| PNP传感器型号PNP Sensor Model | SE2-U25P 3M | ||||||||
| NPN传感器型号NPN Sensor Model | SE2-U253M | ||||||||

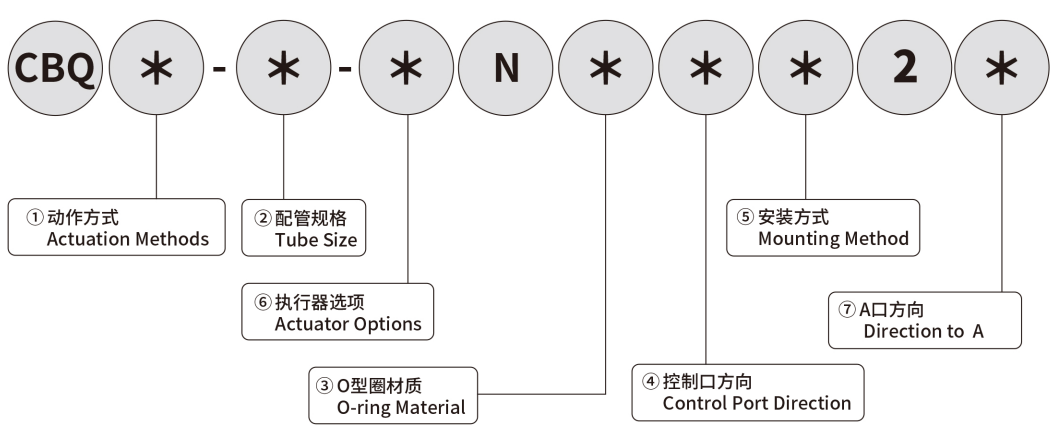

| ①动作方式Actuation Methods | ||
| 1 | NC(常闭Normal Close) | |
| 2 | NO(常开NormalOpen) | |
| 3 | Port B为NC(常闭)Port C为NO(常开) | |
| 4 | PortB为NO(常开)PortC为NC(常闭) | |
| ②配管尺寸(外径x内径)Tube Size(ODxID) | ||
| 1/4"(6.35x3.95) | ||
| 3/8"(9.53x6.35) | 1/2"(12.7x9.5) | |
| 3/4"(19x15.8) | 1"(25.4x22.2) | |
| ③0型圈材质O-ring Material | |
| F | FPM |
④控制口方向Control Port Direction | |||
1 |  | ||
2 | |||
3 | |||
4 | |||
| |||
| ⑤安装方式Mounting Method | ||
| U | 法兰安装Flange Mounting | |
| K | 底面安装Bottom Mounting | |
| ⑥执行器选项Actuator Options | ||
| 00 | 仅ON.OFF(带指示器) ON.OFF Only(with Indicator) | |
| 10 | 带流量调节 With flow regulation | |
| A1 | 带传感器，NPN信号，电缆方向为控制口侧，线缆长度3米 With sensor,NPN signal,cable direction is control port side,cable length 3m | |
| B1 | 带传感器，PNP信号，电缆方向为控制口侧，线缆长度3米 With sensor,PNP signal,cable direction is control port side,cable length 3m | |
| C1 | 带传感器，NPN信号，电缆方向为控制口相反侧，线缆长度3米 With sensor,NPN signal,cable direction is the opposite side of the control port,cable length 3m | |
| D1 | 带传感器，PNP信号，电缆方向为控制口相反侧，线缆长度3米 With sensor,PNP signal,cable direction is the opposite side of the control port,cable | |
| ⑦A口方向Direction To A | ||
| L | 左进 | |
| R | 右进 | |

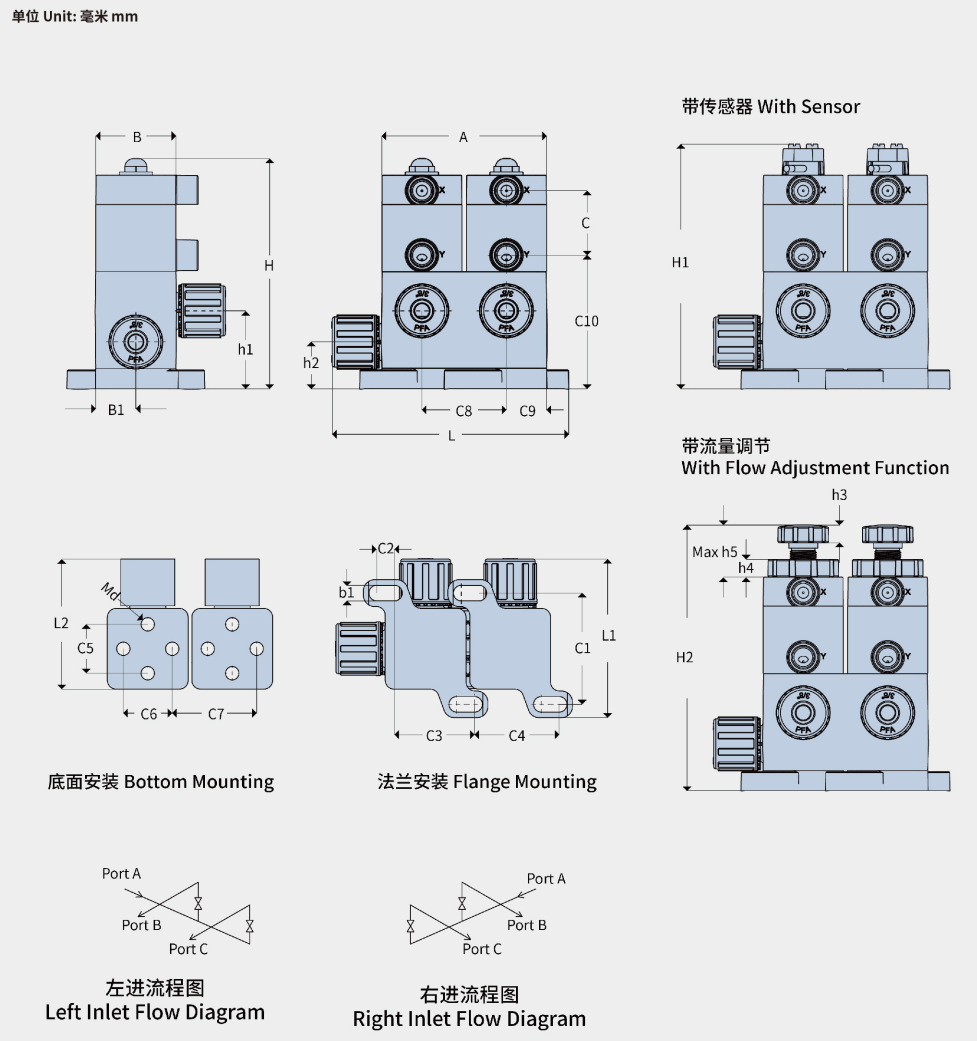

| 规格 Size | 外形尺寸Dimensions(mm) | |||||||||||||||||||
| 通用尺寸 Common Dimensions |  修 | 带流量调节 With Flow Adjustment Function | 法兰安装 Flange Mounting | 底面安装 Bottom Mounting | ||||||||||||||||
| A | B | C | L | H | C8 | H1 | H2 | h4 | h5 | C1 | C2 | C3 | C4 | L1 | C5 | C6 | C7 | d | ||
| h1 | h2 | B1 | C9 | C10 | b1 | L2 | ||||||||||||||
| 1/4" | 46.0 | 22.0 | 15.0 | 66.9 | 75.1 | 24.0 | 76.4 | 85.7 | 10.5 | 15.5 | 30.0 | 4.5 | 16.5 | 23.0 | 46.0 | 14.0 | 14.0 | 24.0 | 5.0 | |
| 25.0 | 17.0 | 11.0 | 11.0 | 48.2 | 7.0 | 39.5 | ||||||||||||||
| 3/8" | 74.0 | 36.0 | 29.0 | 107.2 | 103.5 | 38.0 | 110.0 | 118.9 | 8.0 | 22.9 | 50.0 | 8.0 | 36.0 | 38.0 | 72.3 | 22.0 | 22.0 | 38.0 | 6.0 | |
| 35.0 | 21.0 | 18.0 | 18.0 | 60.0 | 7.0 | 59.5 | ||||||||||||||
| 1/2" | 74.0 | 36.0 | 29.0 | 108.6 | 103.5 | 38.0 | 110.0 | 118.9 | 8.0 | 22.9 | 50.0 | 8.0 | 36.0 | 38.0 | 73.8 | 22.0 | 22.0 | 38.0 | 6.0 | |
| 35.0 | 21.0 | 18.0 | 18.0 | 60.0 | 7.0 | 61.0 | ||||||||||||||
| 3/4” | 94.0 | 46.0 | 41.0 | 142.0 | 132.5 | 48.0 | 137.0 | 139.0 | 8.0 | 14.0 | 64.0 | 11.0 | 39.0 | 48.0 | 102.0 | 28.0 | 28.0 | 48.0 | 8.0 | |
| 46.0 | 27.0 | 23.0 | 23.0 | 77.0 | 9.0 | 83.8 | ||||||||||||||
| 1" | 122.0 | 60.0 | 45.0 | 174.4 | 163.5 | 62.0 | 167.0 | 183.8 | 12.0 | 30.8 | 78.0 | 11.0 | 50.0 | 62.0 | 120.0 | 40.0 | 40.0 | 62.0 | 8.0 | |
| 60.0 | 35.0 | 30.0 | 30.0 | 98.0 | 9.0 | 101.8 | ||||||||||||||
