Product Description
| 项目ITEM | 参数信息PARAMETER INFORMATION | |||
| 使用介质Media | 化学液体、纯水、空气、氮气Chemical Solution,Pure water,Air,Nitrogen | |||
| 介质温度Media Temperature | 5-120℃,含氢氟酸在Contains Hydrofluoric Acid:5-80℃ | |||
| 气动方式Pneumatic Method | 常开/常闭Normal Close/Normal Open | |||
| 配管规格Tube Size | 3/8" | |||
| 配管通径Tube Internal Diameter(mm) | 中6.4 | |||
| 开关频率Frequency of Opening and Closing | 30次/分钟Times/Mnute | |||
| CV值CVValue | 0.64 | |||
| 环境温度Ambient Temperature | 0-60℃(带传感器时0-50℃) | |||
| 安装方式Mounting Method | 底面安装/双孔安装Bottom Mounting/2-Hole Mounting | |||
| 结构耐压Structure Pressure Resistance | 1Mpa | |||

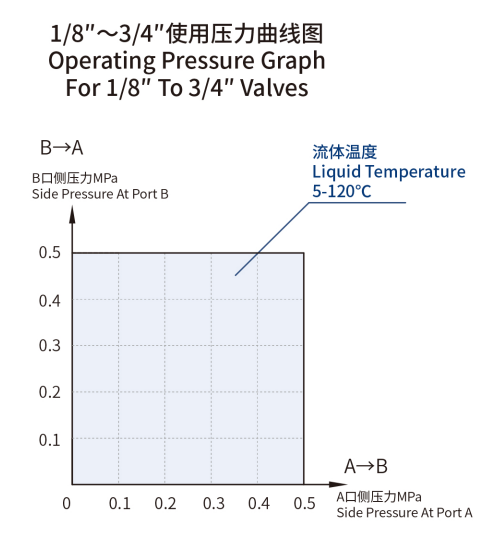

| 使用压力A→BOperating Pressure(A→B) | 0-0.5Mpa | |||
| 使用压力B→A Operating Pressure(B→A) | 0-0.5Mpa | |||
| 阀座泄漏Valve Seat Leakage | Ocm³/min水压Water Pressure | |||
| 执行器控制口Piloting Port | RC1/8"(使用控制口NC:Y口， NO:X口双作用： X、Y口) (Corresponding Control Port:NC:PortY,NO PortX,Dual Action:X,YPort) | |||
| 控制口压力Piloting Port Pressure | 0.35-0.5Mpa | |||
| 金属零部件材质Material of Metal Parts | SUS316(表面喷涂铁氟龙PTFE Surface Coating) | |||
| O形圈材质O-ring Material | EPDM/FPM | |||
| 阀体材质Valve Body Material | PFA | |||
| 执行器材质Actuator Material | PVDF | |||
| 膜片材质Diaphragm Material | PTFE | |||
| 底座材质Mounting Base Material | PVDF | |||
| 调节螺栓材质Material of Adjustment Bolt | PVDF | |||
| 调节螺母材质Material of Adjustment Nut | PVDF | |||
| PNP传感器型号PNP Sensor Model | SE2-U25P 3M | |||
| NPN传感器型号NPN Sensor Model | SE2-U253M | |||

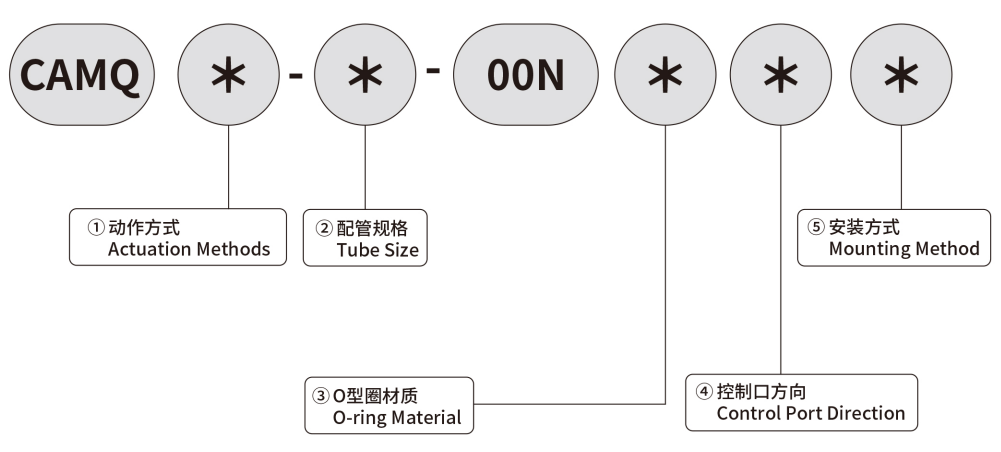

| ①动作方式Actuation Methods | |
| 1 | NC(常闭Normal Close) |
| 2 | NO(常开Normal Open) |
| ②配管尺寸(外径x内径)Tube Size(ODx⊃1;D) | ||
| 3/8"(9.53x6.35) | ||
| ③O型圈材质O-ring Material | |
| E | EPDM |
| F | FPM |

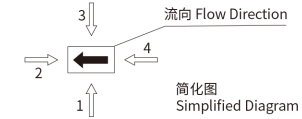

④控制口方向Control Port Direction | |||
1 |  | ||
2 | |||
3 | |||
4 | |||
| |||
| ⑤安装方式Mounting Method | |
| K | 底面安装Bottom Mounting |
| H | 双孔安装2-Hole Mounting |
