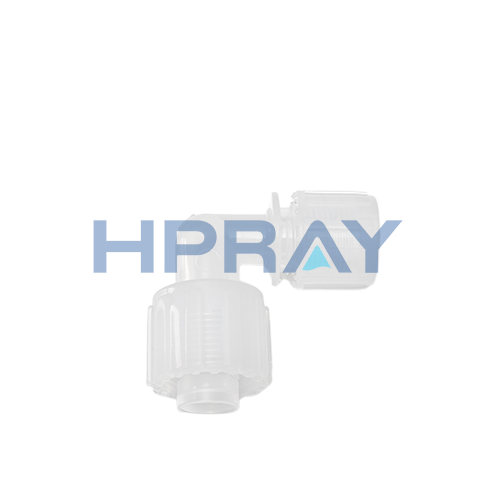

Product Description
规格MODEL | 外形尺寸DIMENSIONS(mm) | ||||||
D | d | d1 | D1 | d2 | L | L1 | |
CLQ1ETS-1/4"XT1/4 | 16.90 | 6.45 | 3.95 | 16.90 | 3.95 | 28.80 | 30.90 |
CLQ1ETS-1/4"XT3/8" | 16.90 | 6.45 | 3.95 | 24.20 | 6.35 | 32.30 | 41.50 |
CLQ1ETS-1/4"XT1/2 | 16.90 | 6.45 | 3.95 | 3040 | 9.53 | 32.30 | 42.50 |
CLQ1ETS-3/8"XT1/4° | 24.20 | 9.80 | 6.35 | 16.90 | 3.95 | 32.70 | 37.60 |
CLQ1ETS-3/8"XT3/8" | 24.20 | 9.80 | 6.35 | 2420 | 6.35 | 36.40 | 41.10 |
CLQ1ETS-3/8"XT1/2 | 24.20 | 9.80 | 6.35 | 30.40 | 9.53 | 40.10 | 45.90 |
CLQ1ETS-3/8"XT3/4° | 24.20 | 9.80 | 6.35 | 42.00 | 15.80 | 44.40 | 57.70 |
CLQ1ETS-1/2"XT3/8" | 30.40 | 12.80 | 9.53 | 24.20 | 6.35 | 40.50 | 48.10 |
CLQ1ETS-1/2"XT1/2 | 30.40 | 12.80 | 9.53 | 30.40 | 9.53 | 43.50 | 48.90 |
CLQ1ETS-1/2"XT3/4° | 30.40 | 12.80 | 9.53 | 42.00 | 15.80 | 49.20 | 60.40 |
CLQ1ETS-1/2"XT1" | 30.40 | 12.80 | 9.53 | 49.20 | 22.20 | 53.80 | 71.00 |
CLQ1ETS-3/4"×T1/2" | 42.00 | 19.20 | 15.80 | 30.40 | 9.53 | 56.20 | 51.00 |
CLQ1ETS-3/4"XT3/4 | 42.00 | 19.20 | 15.80 | 42.00 | 15.80 | 60.00 | 66.10 |
CLQ1ETS-3/4"XT1" | 42.00 | 19.20 | 15.80 | 49.20 | 22.20 | 63.10 | 74.90 |
CLQ1ETS-1"XT3/4 | 49.20 | 25.70 | 22.20 | 42.00 | 15.80 | 65.30 | 70.10 |
CLQ1ETS-1"XT1" | 49.20 | 25.70 | 22.20 | 49.20 | 22.20 | 69.80 | 80.10 |
The space-saving end willshrinkin length after expanding,so it will be shorter than the theoretical length listed above.Fitings of all sizes are uniformly designed with asingle-side 3mm reserve.
