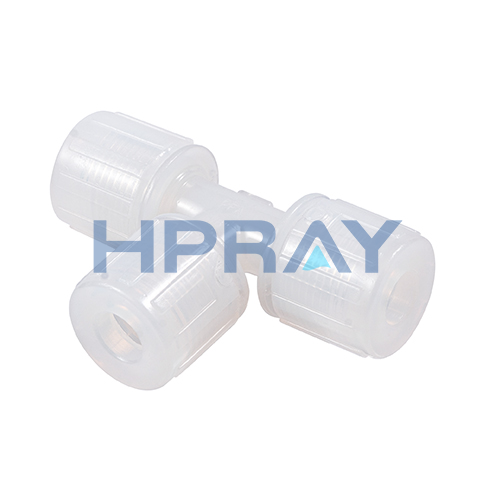

PFA Tee Sleeve-insert Type

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

PFA Tee Sleeve-insert Type Specifications

规格MODEL	外形尺寸DIMENSIONS(mm)
规格MODEL	D1	d1	d4	D2	d2	d5	D3	d3	d6	L	L1	L2	L3
CLQ1T-1/8"X1/8"X1/8"	12.00	3.30	2.18	12.00	3.30	2.18	12.00	3.30	2.18	38.40	18.90	18.90	19.50
CLQ1T-1/4"X1/4"X1/4"	16.90	6.45	3.95	16.90	6.45	3.95	16.90	6.45	3.95	57.70	28.80	28.80	28.90
CLQ1T-1/4"X1/2"X1/4"	16.90	6.45	3.95	30.40	12.80	9.53	16.90	6.45	3.95	71.00	35.40	35.10	35.60
CLQ1T-1/4"X3/8"X1/4"	16.90	6.45	3.95	24.20	9.80	6.35	1690	6.45	3.95	65.00	32.50	33.40	32.50
CLQ1T-1/4"X1/4"X3/8"	15.72	6.45	3.95	16.90	6.45	3.95	24.20	9.80	6.35	61.60	28.80	32.50	32.70
CLQ1T-3/8"X1/4"X3/8"	24.20	9.80	6.35	16.90	6.45	3.95	24.20	9.80	6.35	65.50	32.70	32.40	32.80
CLQ1T-3/8"X3/8"X3/8"	24.20	9.80	6.35	24.20	9.80	6.35	24.20	9.80	6.35	71.20	35.70	35.70	35.50
CLQ1T-3/8"X1/2"X3/8"	24.20	9.80	6.35	30.40	12.80	9.80	24.20	9.80	6.35	78.80	39.40	39.50	39.40
CLQ1T-3/8"X3/8"X1/2"	24.20	980	6.35	24.20	9.80	6.35	30.40	12.8	9.53	76.90	36.35	39.30	40.55
CLQ1T-1/2"X1/4"X1/4"	30.40	12.80	9.53	16.90	6.45	3.95	16.90	6.45	3.95	79.20	41.80	35.45	37.40
CLQ1T-1/2"X1/4"X1/2"	30.40	12.80	9.53	16.90	6.45	3.95	30.40	12.80	9.53	73.70	36.85	35.80	36.85
CLQ1T-1/2"X1/2"X1/4"	30.40	12.80	9.53	30.40	12.80	9.53	1690	6.45	3.95	79.20	35.60	53.60	43.60
CLQ1T-1/2"X3/8"X1/2"	30.40	12.80	9.53	24.20	9.80	6.35	30.40	12.80	9.53	81.00	40.30	39.10	40.70
CLQ1T-1/2"X1/2"X3/8"	30.40	12.80	9.53	30.40	12.80	953	24.20	9.80	6.35	84.30	44.20	44.20	40.10
CLQ1T-1/2"X1/2"X1/2"	30.40	12.80	9.53	30.40	12.80	9.53	30.40	12.80	9.53	87.00	43.50	43.50	43.50
CLQ1T-1/2"X3/4"X1/2"	30.40	12.80	9.53	42.00	19.20	15.80	30.40	12.80	9.53	98.40	49.20	55.00	49.20
CLQ1T-3/4"X1/4"X3/4"	42.00	19.20	15.80	16.90	6.45	3.95	42.00	19.20	15.80	97.70	48.60	40.40	49.10
CLQ1T-3/4"X3/8"X3/4"	42.00	19.20	15.80	24.20	9.80	6.35	42.00	19.20	15.80	104.80	52.40	44.40	52.40
CLQ1T-3/4"X1/2"X3/8"	42.00	19.20	15.80	30.40	12.80	9.53	24.20	9.80	6.35	104.60	55.70	49.70	48.90
CLQ1T-3/4"X1/2"X1/2"	42.00	19.20	15.80	30.40	12.80	9.53	3040	12.80	9.53	110.50	62.60	50.20	47.90
CLQ1T-3/4"X1/2"X3/4"	42.00	19.20	15.80	30.40	12.80	9.53	42.00	19.20	15.80	110.60	55.30	49.20	55.30
CLQ1T-3/4"X3/4"X3/8"	42.00	19.20	15.80	42.00	19.20	15.80	24.20	9.80	6.35	107.40	60.10	60.30	47.30
CLQ1T-3/4"X3/4"X3/4"	42.00	19.20	15.80	42.00	19.20	15.80	42.00	19.20	15.80	120.00	60.00	60.00	60.00
CLQ1T-3/4"X3/4"X1/4"	42.00	19.20	15.80	42.00	19.20	15.80	16.90	6.45	3.95	104.50	58.80	58.80	45.70
CLQ1T-3/4"X3/4"X1/2"	42.00	19.20	15.80	42.00	19.20	1580	30.40	12.80	9.53	112.20	52.20	71.10	60.00
CLQ1T-3/4"X1"X3/4"	42.00	19.20	15.80	49.20	25.70	22.20	42.00	19.20	15.80	123.30	60.10	53.70	63.20
CLQ1T-1"X1/4"X1	49.20	25.70	22.20	16.90	6.45	3.95	49.20	25.70	22.20	115.60	57.80	45.70	57.80
CLQ1T-1"X3/8"XI"	49.20	25.70	22.20	24.20	9.80	6.35	49.20	25.70	22.20	115.60	57.80	50.30	57.80
CLQ1T-1"X1/2"X1/2"	49.20	25.70	22.20	30.40	12.80	9.53	30.40	12.80	9.53	121.60	67.50	51.80	54.10
CLQ1T-1"X1/2"X3/4"	49.20	25.70	22.20	30.40	12.80	9.53	42.00	19.20	15.80	123.30	60.80	53.70	62.50
CLQ1T-1"Xi/2Xi"	49.20	25.70	22.20	30.40	12.80	9.53	49.20	25.70	22.20	121.60	61.00	53.00	60.60
CLQiT-1"X3/4"XI"	4920	25.70	22.20	42.00	19.20	15.80	49.20	25.70	22.20	130.20	65.10	65.20	65.10
CLQ1T-1"X1"X1/4"	49.20	25.70	22.20	49.20	25.70	22.20	16.90	6.45	3.95	122.00	70.50	70.50	51.50
CLQ1T-1"X1"X3/4"	49.20	25.70	22.20	49.20	25.70	22.20	42.00	19.20	1580	135.70	68.30	71.10	67.40
CLQ1T-1"X1"X1"	49.20	25.70	22.20	49.20	25.70	22.20	49.20	25.70	22.20	141.00	70.70	70.70	70.30
CLQ1T-1-1/4"XI"X1-1/4"	65.00	32.00	28.00	49.20	25.70	22.20	65.00	32.00	28.00	169.40	84.70	78.10	84.70
CLQ1T-1-1/4"X1-1/4"X1-1/4"	65.00	32.00	28.00	65.00	32.00	28.00	65.00	32.00	28.00	182.40	91.20	91.70	91.20
CLQ1T-1-1/2"X1"X1-1/2"	72.00	38.40	33.70	49.20	25.70	22.20	72.00	38.40	33.70	175.40	87.70	83.30	87.70
CLQ1T-1-1/2"X1-1/4"X1-1/2"	72.00	38.40	33.70	65.00	32.00	28.00	72.00	38.40	33.70	189.70	94.85	94.70	94.85
CLQIT-1-1/2"X1-1/2"X1-1/2"	72.00	38.40	33.70	72.00	38.40	33.70	72.00	38.40	33.70	193.70	96.85	96.85	96.85
