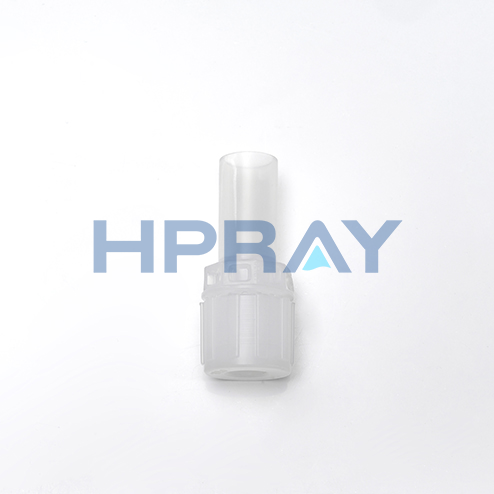

Product Description
规格MODEL | 外形尺寸DIMENSIONS(mm) | ||||||
D | d | d1 | D1 | L | L1 | E | |
CLQ1UT-1/4"XT3/8° | 16.90 | 6.45 | 3.95 | 9.53 | 50.00 | 23.60 | 1.60 |
CLQ1UT-1/4"XT1/2" | 16.90 | 6.45 | 3.95 | 12.70 | 50.10 | 24.10 | 1.60 |
CLQ1UT-3/8"XT1/2 | 24.20 | 9.80 | 6.35 | 12.70 | 55.50 | 23.20 | 1.60 |
CLQ1UT-3/8"XT3/4° | 24.20 | 9.80 | 6.35 | 19.00 | 66.70 | 34.50 | 1.60 |
CLQ1UT-1/2"×T3/8" | 30.40 | 12.80 | 9.53 | 9.53 | 63.00 | 22.70 | 1.60 |
CLQ1UT-1/2"XT3/4° | 30.40 | 12.80 | 9.53 | 19.00 | 71.60 | 34.30 | 1.60 |
CLQ1UT-1/2"XT1" | 30.40 | 12.80 | 9.53 | 25.40 | 81.80 | 45.00 | 1.60 |
CLQ1UT-3/4"XT1/2" | 42.00 | 19.20 | 15.80 | 12.70 | 73.10 | 23.60 | 1.60 |
CLQ1UT-3/4"XT3/8° | 42.00 | 19.20 | 15.80 | 9.53 | 73.10 | 23.10 | 1.60 |
CLQ1UT-3/4"XT1" | 42.00 | 19.20 | 15.80 | 25.40 | 94.10 | 44.40 | 1.60 |
CLQ1UT-1"XT3/4° | 49.20 | 25.70 | 22.20 | 19.00 | 88.90 | 33.20 | 1.60 |
