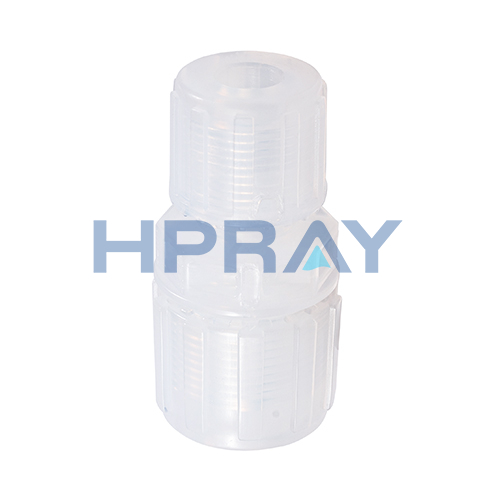

Product Description
规 格 MODEL | 外 形 尺 寸 DIMENSIONS(mm) | ||||||
D | d | d1 | D2 | d2 | d3 | L | |
CLQ1U-1/8"X1/8" | 12.00 | 3.30 | 2.18 | 12.00 | 3.30 | 2.18 | 29.00 |
CLQ1U-1/4"X1/8" | 15.72 | 6.45 | 3.95 | 12.00 | 3.30 | 2.18 | 36.80 |
CLQ1U-1/4"X1/4" | 15.72 | 6.45 | 3.95 | 15.72 | 6.45 | 3.95 | 45.00 |
CLQ1U-3/8"X1/4" | 24.20 | 9.80 | 6.35 | 15.72 | 6.45 | 3.95 | 50.70 |
CLQ1U-3/8"X3/8" | 24.20 | 9.80 | 6.35 | 24.20 | 9.80 | 6.35 | 54.80 |
CLQ1U-1/2"X1/4" | 30.40 | 12.80 | 9.53 | 15.72 | 12.80 | 3.95 | 53.70 |
CLQ1U-1/2"X3/8" | 30.40 | 12.80 | 9.53 | 24.20 | 9.80 | 6.35 | 57.30 |
CLQ1U-1/2"X1/2" | 30.40 | 12.80 | 9.53 | 30.40 | 12.80 | 9.53 | 63.00 |
CLQ1U-3/4"X1/4" | 42.00 | 19.20 | 15.80 | 15.72 | 6.45 | 3.95 | 66.90 |
CLQ1U-3/4"X3/8" | 42.00 | 19.20 | 15.80 | 24.20 | 9.80 | 6.35 | 70.80 |
CLQ1U-3/4"X1/2" | 42.00 | 19.20 | 15.80 | 30.40 | 12.80 | 9.53 | 74.90 |
CLQ1U-3/4"X3/4" | 42.00 | 19.20 | 15.80 | 42.00 | 1920 | 15.80 | 88.00 |
CLQ1U-1"X3/8" | 49.20 | 25.70 | 22.20 | 24.20 | 9.80 | 6.35 | 76.10 |
CLQ1U-1"X1/2" | 49.20 | 25.70 | 22.20 | 30.40 | 12.80 | 9.53 | 79.70 |
CLQ1U-1"X3/4" | 49.20 | 25.70 | 22.20 | 42.00 | 19.20 | 15.80 | 91.50 |
CLQ1U-1"XI" | 4920 | 25.70 | 22.20 | 49.20 | 25.70 | 22.20 | 98.60 |
CLQ1U-1-1/4"X1" | 65.00 | 32.00 | 28.00 | 49.20 | 25.70 | 22.20 | 115.80 |
CLQ1U-1-1/4"X1-1/4" | 65.00 | 32.00 | 28.00 | 65.00 | 32.00 | 28.00 | 125.40 |
CLQ1U-1-1/2"X1" | 72.00 | 38.40 | 33.70 | 49.20 | 25.70 | 22.20 | 119.80 |
CLQ1U-1-1/2"X1-1/4" | 72.00 | 38.40 | 33.70 | 65.00 | 32.00 | 28.00 | 129.40 |
CLQ1U-1-1/2"X1-1/2" | 72.00 | 38.40 | 33.70 | 72.00 | 38.40 | 33.70 | 133.40 |
规格MODEL | 外形尺寸DIMENSIONS (mm) | ||||||
D | d | d1 | D2 | d2 | d3 | L | |
CLQ1U-4X4 | 12.00 | 4.00 | 3.00 | 11.78 | 4.00 | 3.00 | 28.30 |
