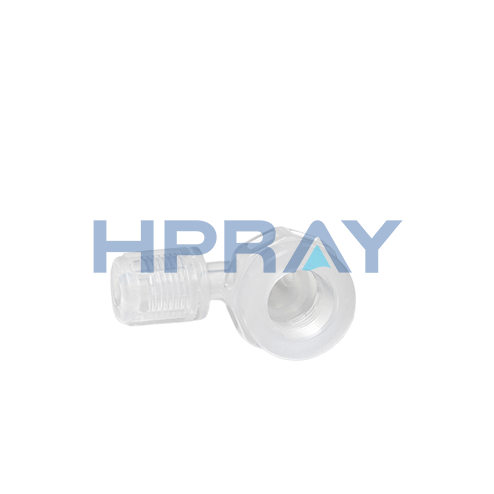

PFA Female 90 Degree Elbow Sleeve-Insert Type

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description


PFA Female 90 Degree Elbow Sleeve-Insert Type Specifications


规格MODEL

外形尺寸DIMENSIONS(mm)

D

d

d1

L

L1

A

CLQILF-1/4"X1/4"-MN

15.72

6.45

3.95

32.50

27.50

NPT1/4"

CLQ1LF-1/4"X3/8"-MN

15.72

6.45

3.95

35.50

25.90

NPT3/8"

CLQ1LF-1/4"X1/4"-MR

15.72

6.45

3.95

32.50

27.50

R1/4"

CLQ1LF-1/4"X3/8"-MR

15.72

6.45

3.95

35.50

25.90

R3/8"
