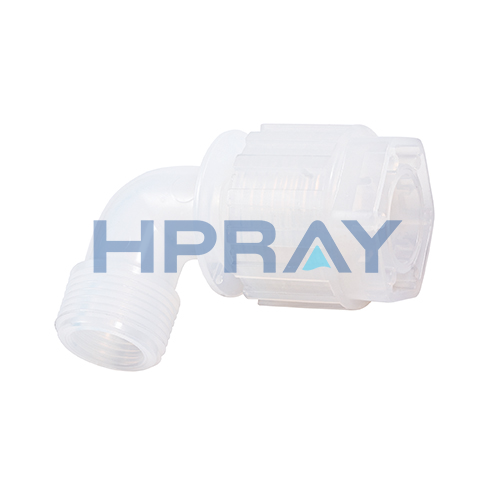

PFA Male 90 Degree Elbow Sleeve-Insert Type

D

d

d1

L1

L2

CLQ1L-1/8"-MN

12.00

3.30

2.18

18.90

15.40

NPT1/8

CLQ1L-1/4"X1/8"-MN

15.72

6.45

3.95

25.70

18.20

NPT1/8°

CLQ1L-1/4"-MN

15.72

6.45

3.95

28.80

20.80

NPT1/4°

CLQ1L-1/4"X3/8"-MN

15.72

6.45

3.95

29.30

21.70

NPT3/8

CLQIL-3/8"X1/4°-MN

24.20

9.80

6.35

34.60

25.00

NPT1/4"

CLQ1L-3/8-MN

24.20

9.80

6.35

36.60

25.00

NPT3/8

CLQIL-3/8"X1/2"-MN

24.20

9.80

6.35

38.90

28.50

NPTI/2

CLQ1L-1/2"X1/4"-MN

30.40

12.80

9.53

39.90

27.20

NPT1/4"

CLQ1L-1/2'-MN

30.40

12.80

9.53

48.00

36.40

NPT1/2

CLQIL-1/2"X3/4°-MN

30.40

12.80

9.53

45.10

31.90

NPT3/4

CLQIL-1/2"X3/8-MN

30.40

12.80

9.53

41.40

28.00

NPT3/8

CLQ1L-3/4"X1/2"-MN

42.00

19.20

15.80

55.80

36.70

NPT1/2"

CLQ1L-3/4"-MN

42.00

19.20

15.80

60.00

36.50

NPT3/4"

CLQIL-1"-MN

49.20

25.70

22.20

70.50

43.70

NPT1"

CLQ1L-1/8°-MR

12.00

3.30

2.18

18.90

15.40

R1/8"

CLQ1L-1/4"X1/8"-MR

15.72

6.45

3.95

25.70

18.20

R1/8"

CLQ1L-1/4°-MR

15.72

6.45

395

28.80

20.80

R1/4"

CLQ1L-1/4"X3/8"-MR

15.72

6.45

3.95

29.30

21.70

R3/8"

CLQ1L-3/8"X1/4"-MR

24.20

9.80

6.35

34.60

25.00

R1/4"

CLQ1L-3/8"-MR

24.20

9.80

6.35

36.60

25.00

R3/8"

CLQ1L-3/8"X1/2"-MR

24.20

9.80

6.35

38.90

28.50

R1/2"

CLQ1L-1/2"X1/4"-MR

30.40

12.80

9.53

39.90

27.20

R1/4"

CLQ1L-1/2°-MR

30.40

12.80

9.53

48.00

36.40

R1/2"

CLQ1L-1/2"X3/4"-MR

30.40

12.80

9.53

45.10

31.90

R3/4"

CLQIL-1/2"X3/8"-MR

30.40

12.80

9.53

41.40

28.00

R3/8"

CLQ1L-3/4"X1/2"-MR

42.00

19.20

15.80

55.80

36.70

R1/2"

CLQ1L-3/4°-MR

42.00

19.20

15.80

60.00

36.50

R3/4"

CLQ1L-1"-MR

49.20

25.70

22.20

70.50

43.70

R¹

D

d

d1

L1

L2

A

CLQ1L-12X1/4"-MN

30.4

12

100

36.9

28.0

RPT1/4"

CLQ1L-12X1/4"-MR

30.4

12

10.0

36.9

28.0

R1/4°
