Product Description

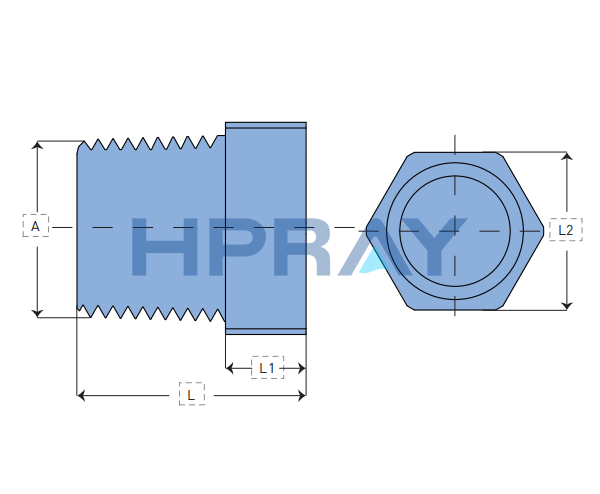

规格MODEL | 外形尺寸DIMENSIONS(mm) | |||
L | L1 | L2 | A | |
FPW-1/8"-MN | 18.00 | 10.00 | 16.00 | NPT1/8" |
FPW-1/4"-MN | 10.00 | 7.50 | 20.00 | NPT1/4" |
FPW-3/8"-MN | 21.60 | 7.60 | 20.00 | NPT3/8" |
FPW-1/2"-MN | 27.00 | 10.00 | 30.00 | NPT1/2" |
FPW-3/4"-MN | 27.00 | 10.00 | 35.50 | NPT3/4 |
FPW-1"-MN | 29.00 | 10.00 | 44.00 | NPT1" |
