Product Description
规格MODEL |

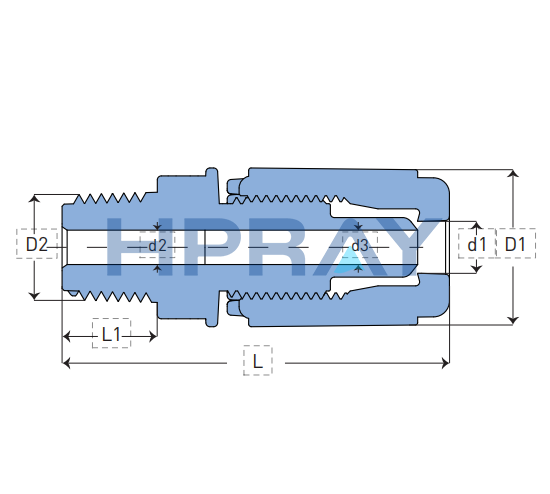

外形尺寸DIMENSIONS(mm) |
||||||
D1 |
d1 |
d3 |
D2 |
d2 |
L |
L1 |
|
KLQ1H-1/4"X1/4"-MN |
18.00 |
6.65 |
3.95 |
NPT1/4 |
3.95 |
48.80 |
12.00 |
KLQ1H-1/4"X1/8"-MN |
18.00 |
6.65 |
3.95 |
NPT1/8 |
2.18 |
48.50 |
9.60 |
KLQ1H-1/4"X3/8"-MN |
18.00 |
6.65 |
3.95 |
NPT 3/8 |
6.35 |
52.00 |
13.00 |
KLQ1H-1/4"X1/2"-MN |
18.00 |
6.65 |
3.95 |
NPT 1/2 |
9.53 |
57.00 |
17.00 |
|
21.70 |
9.80 |
6.35 |
NPT1/4 |
3.95 |
53.00 |
12.40 |
|
21.70 |
9.80 |
6.35 |
NPT 3/8 |
6.35 |
48.80 |
12.50 |
KLQ1H-3/8"X1/2"-MN |
21.70 |
9.80 |
6.35 |
NPT 1/2 |
9.53 |
57.50 |
17.00 |
KLQ1H-3/8"X3/4"-MN |
21.70 |
9.80 |
6.35 |
NPT 3/4 |
15.80 |
58.00 |
17.50 |
KLQ1H-3/8"X1"-MN |
21.70 |
9.80 |
6.35 |
NPT1 |
22.20 |
63.00 |
21.50 |
KLQ1H-1/2"X1/4"-MN |
24.60 |
13.00 |
9.53 |
NPT 1/4 |
3.95 |
51.70 |
12.40 |
KLQ1H-1/2"X3/8"-MN |
24.60 |
13.00 |
9.53 |
NPT 3/8 |
6.35 |
58.50 |
13.40 |
KLQ111-1/2"X1/2"-MN |
24.60 |
13.00 |
9.53 |
NPT 1/2 |
9.53 |
G2.00 |
17.00 |
KLQ1H-1/2"X3/4"-MN |
24.60 |
13.00 |
9.53 |
NPT 3/4 |
15.80 |
61.50 |
17.50 |
KLQ1H-1/2"X1"-MN |
24.60 |
13.00 |
9.53 |
NPT1 |
22.20 |
66.50 |
21.50 |
KLQ1H-3/4"X3/8"-MN |
32.50 |
19.35 |
15.80 |
NPT 3/8 |
6.35 |
61.00 |
14.00 |
KLQ1H-3/4"X1/2"-MN |
32.50 |
19.35 |
15.80 |
NPT1/2 |
9.53 |
64.00 |
17.00 |
KLQ1H-3/4"X3/4"-MN |
32.50 |
19.35 |
15.80 |
NPT 3/4 |
15.80 |
64.00 |
17.00 |
KLQ1H-3/4"X1"-MN |
32.50 |
19.35 |
15.80 |
NPT1 |
22.20 |
69.00 |
21.00 |
KLQ1H-1"X1/2"-MN |
44.00 |
25.75 |
22.20 |
NPT1/2 |
9.53 |
75.00 |
17.00 |
KLQ1H-1"X3/4"-MN |
44.00 |
25.75 |
22.20 |
NPT 3/4 |
15.80 |
75.50 |
17.50 |
KLQ1H-1"X1"-MN |
44.00 |
25.75 |
22.20 |
NPT1 |
22.20 |
79.50 |
21.50 |
KLQ1H-3/8"X3/8"-MR |
21.70 |
9.80 |
6.35 |
P13/8 |
6.35 |
48.80 |
12.50 |
KLQ1H-3/8"X1/4"-MN
