Product Description
规格MODEL |

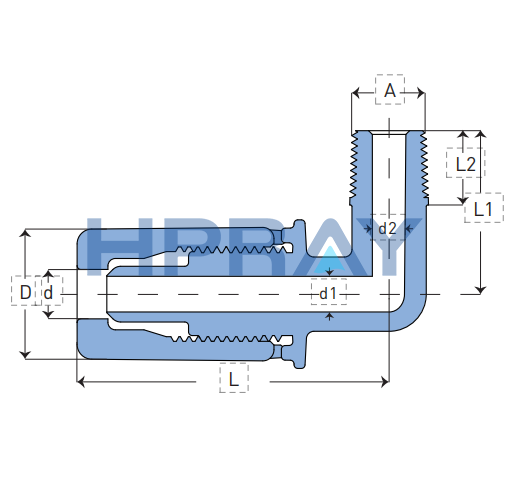

外形尺寸DIMENSIONS(mm) |
|||||||
D |
d |
d1 |
d2 |
L |
L1 |
L2 |
A |
|
KLQ1L-1/4"X1/8"-MN |
18.00 |
6.65 |
3.95 |
2.18 |
42.00 |
22.00 |
10.00 |
NPT1/8 |
KLQ1L-1/4°x1/4"-MN |
18.00 |
6.65 |
3.95 |
3.95 |
42.00 |
25.00 |
13.00 |
NPTI⁴ |
KLQ1L-1/4°x1/2"-MN |
18.00 |
6.65 |
3.95 |
9.53 |
43.00 |
30.50 |
17.00 |
NPT1/2" |
KLQ1L-3/8°x1/4"-MN |
21.70 |
9.75 |
6.35 |
3.95 |
44.50 |
27.00 |
13.00 |
NPT1/4" |
KLQ1L-3/8"x3/8"-MN |
21.70 |
9.75 |
6.35 |
6.35 |
46.50 |
27.00 |
13.50 |
NPT3/8" |
KLQ1L-3/8'x1/2"-MN |
21.70 |
9.75 |
6.35 |
9.53 |
48.50 |
30.50 |
17.00 |
NPT1/2" |
KLQ1L-3/8°x3/4"-MN |
21.70 |
9.75 |
6.35 |
15.80 |
5150 |
34.50 |
20.00 |
NPT3/4" |
KLQ1L-1/2*x3/8"-MN |
24.60 |
13.00 |
9.53 |
6.35 |
50.00 |
29.00 |
13.50 |
NPT3/8" |
KLQ1L-1/2*x1/2"-MN |
24.60 |
13.00 |
9.53 |
9.53 |
52.00 |
32.50 |
17.00 |
NPT1/2" |
KLQ1L-1/2°×3/4"-MN |
24.60 |
19.35 |
9.53 |
15.80 |
55.00 |
36.50 |
20.00 |
NPT3/4" |
KLQ1L-3/4°x1/2"-MN |
32.50 |
19.35 |
15.80 |
9.53 |
54.50 |
36.50 |
17.00 |
NPT1/2" |
KLQ1L-3/4°x3/4"-MN |
32.50 |
19.35 |
15.80 |
15.80 |
57.00 |
39.50 |
20.00 |
NPT3/4" |
KLQ1L-3/4"x1"-MN |
32.50 |
19.35 |
15.80 |
22.20 |
59.00 |
41.00 |
22.00 |
NPT⊃1; |
KLQ1L-1"×3/4"-MN |
44.00 |
25.75 |
22.20 |
15.80 |
67.00 |
45.50 |
20.00 |
NPT3/4" |
KLQ1L-1°xl"-MN |
44.00 |
25.75 |
22.20 |
22.20 |
68.50 |
48.00 |
22.00 |
NPT⊃1; |
