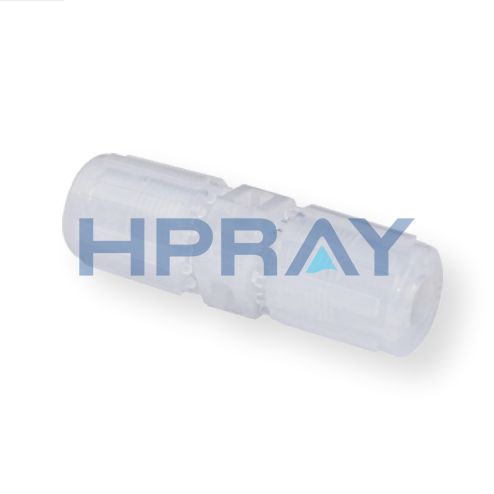

Product Description

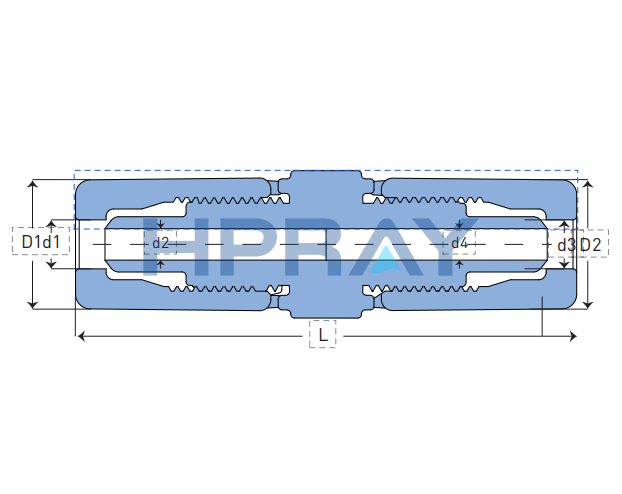

规格MODEL | 外形尺寸DIMENSIONS(mm) | ||||||||
D1 | d1 | d2 | D2 | d3 | d4 | L | L1 L2 | ||
KLQ1U-1/4"X1/4" | 18.00 | 6.65 | 3.95 | 18.00 | 6.65 | 3.95 | 68.00 | 27.50 | 27.50 |
KLQ1U-3/8"X1/4" | 21.70 | 980 | 6.35 | 18.00 | 6.65 | 3.95 | 69.60 | 28.00 | 27.50 |
KLQ1U-3/8"X3/8" | 21.70 | 9.80 | 6.35 | 21.70 | 9.80 | 6.35 | 70.10 | 28.00 | 28.00 |
KLQ1U-1/2"X1/4" | 24.60 | 13.00 | 9.53 | 18.00 | 6.65 | 3.95 | 72.00 | 31.50 | 27.50 |
KLQ1U-1/2"X3/8" | 24.60 | 13.00 | 9.53 | 21.70 | 9.80 | 6.35 | 74.60 | 31.50 | 28.00 |
KLQ1U-1/2"X1/2" | 24.60 | 13.00 | 9.53 | 24.60 | 13.00 | 9.53 | 78.00 | 31.50 | 31.50 |
KLQ1U-3/4"X1/4" | 32.50 | 19.35 | 15.80 | 18.00 | 6.65 | 3.95 | 76.60 | 33.50 | 27.50 |
KLQ1U-3/4"X3/8" | 32.50 | 19.35 | 15.80 | 21.70 | 9.80 | 6.35 | 77.00 | 33.50 | 28.00 |
KLQ1U-3/4"X1/2" | 32.50 | 19.35 | 15.80 | 24.60 | 13.00 | 9.53 | 80.40 | 33.50 | 31.50 |
KLQ1U-3/4"X3/4" | 32.50 | 19.35 | 15.80 | 32.50 | 19.35 | 15.80 | 82.30 | 33.50 | 33.50 |
KLQ1U-1"X1/2" | 44.00 | 25.75 | 22.20 | 24.60 | 13.00 | 9.53 | 92.00 | 42.00 | 31.50 |
KLQ1U-1"X3/4" | 44.00 | 25.75 | 22.20 | 32.50 | 19.35 | 15.80 | 93.80 | 42.00 | 33.50 |
KLQ1U-1"X1" | 44.00 | 25.75 | 22.20 | 44.00 | 25.75 | 22.20 | 102.00 | 42.00 | 42.00 |
KLQ1U-1-1/4"X1-1/4° | 56.30 | 32.00 | 28.00 | 56.30 | 32.00 | 28.00 | 116.00 | 49.50 | 49.50 |
KLQ1U-1-1/4"x1" | 56.30 | 32.00 | 28.00 | 44.00 | 25.75 | 22.20 | 109.10 | 49.50 | 42.50 |
