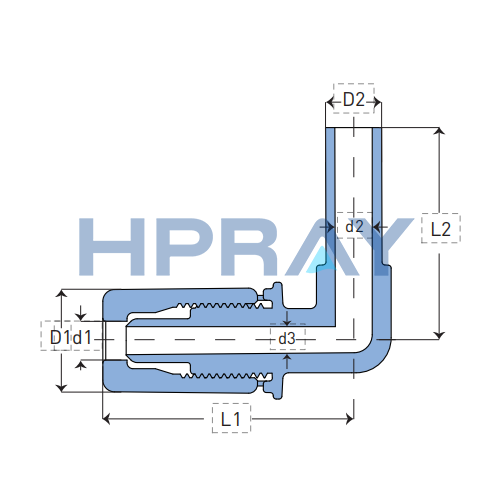

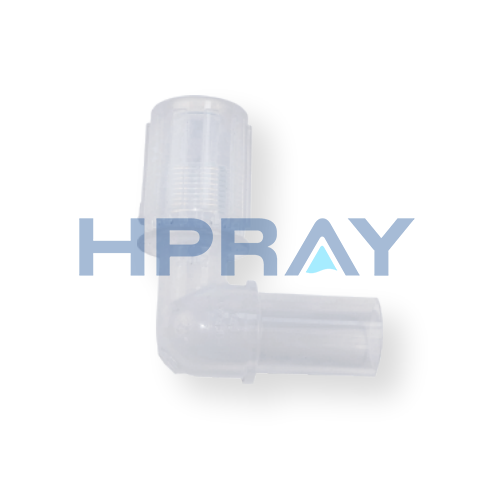

规格MODEL | 外形尺寸DIMENSIONS(mm) | ||||||
D1 | d1 | d3 | D2 | d2 | L1 | L2 | |
KLQ1ET-1/4"XT1/4° | 18.00 | 6.65 | 3.95 | 6.35 | 3.95 | 41.20 | 33.80 |
KLQ1ET-1/4"XT3/8" | 18.00 | 6.65 | 3.95 | 9.53 | 6.35 | 43.00 | 36.50 |
KLQ1ET-1/4"XT1/2" | 18.00 | 6.65 | 3.95 | 12.70 | 9.53 | 45.50 | 36.00 |
KLQ1ET-3/8"XT1/4" | 21.70 | 9.80 | 6.35 | 6.35 | 3.95 | 42.00 | 36.00 |
KLQ1ET-3/8"XT3/8" | 21.70 | 9.80 | 6.35 | 9.53 | 6.35 | 44.00 | 36.50 |
KLQIET-3/8"XT1/2° | 21.70 | 9.80 | 6.35 | 12.70 | 9.53 | 46.00 | 38.00 |
KLQ1ET-3/8"XT3/4" | 21.70 | 9.80 | 6.35 | 19.00 | 15.80 | 55.50 | 45.00 |
KLQIET-1/2"XT3/8" | 24.60 | 13.00 | 9.53 | 9.53 | 6.35 | 48.00 | 38.00 |
KLQIET-1/2"XT1/2" | 24.60 | 13.00 | 9.53 | 12.70 | 953 | 50.00 | 39.50 |
KLQ1ET-1/2"XT3/4" | 24.60 | 13.00 | 9.53 | 19.00 | 15.80 | 54.50 | 45.00 |
KLQ1ET-1/2"XT1" | 24.60 | 13.00 | 9.53 | 25.40 | 22.20 | 60.00 | 51.00 |
KLQ1ET-3/4"XT3/4" | 32.50 | 19.35 | 1580 | 19.00 | 15.80 | 59.00 | 50.00 |
KLQ1ET-3/4"XT1" | 32.50 | 19.35 | 15.80 | 25.40 | 22.20 | 62.00 | 54.00 |
KLQ1ET-1"XT1/4" | 44.00 | 25.75 | 22.20 | 6.35 | 3.95 | 61.00 | 48.20 |
KLQ1ET-1°XT3/4" | 44.00 | 25.75 | 22.20 | 19.00 | 15.80 | 67.50 | 56.00 |
KLQ1ET-1"XT1" | 44.00 | 25.75 | 22.20 | 25.40 | 22.20 | 71.00 | 60.00 |
