Product Description
规格MODEL |

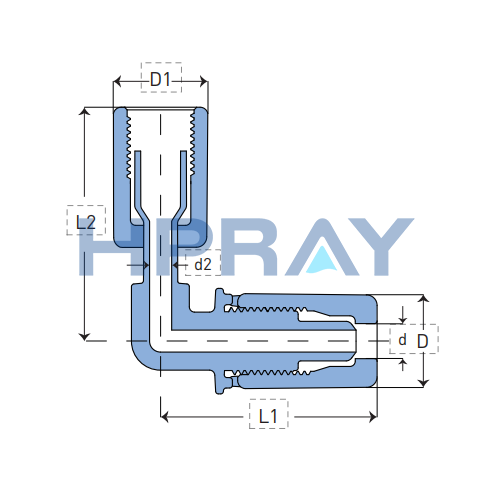

外形尺寸DIMENSIONS(mm) |
||||||
D |
d |
d1 |
D1 |
d2 |
L1 |
L2 |
|
KLQ1ETS-1/4"XT1/4" |
18.00 |
6.65 |
3.95 |
18.00 |
3.95 |
41.20 |
45.80 |
KLQ1ETS-1/4"XT3/8" |
18.00 |
6.65 |
3.95 |
18.00 |
6.35 |
43.00 |
49.00 |
KLQ1ETS-1/4"XT1/2" |
18.00 |
6.65 |
3.95 |
18.00 |
9.53 |
45.50 |
50.00 |
KLQ1ETS-3/8"XT1/4" |
21.70 |
9.80 |
6.35 |
21.70 |
3.95 |
42.00 |
48.00 |
KLQ1ETS-3/8"XT3/8" |
21.70 |
9.80 |
6.35 |
21.70 |
6.35 |
44.00 |
49.00 |
KLQ1ETS-3/8"XT1/2" |
21.70 |
9.80 |
6.35 |
21.70 |
9.53 |
46.00 |
52.00 |
KLQ1ETS-3/8"XT3/4" |
21.70 |
9.80 |
6.35 |
21.70 |
15.80 |
55.50 |
59.60 |
KLQ1ETS-1/2"XT3/8" |
24.60 |
13.00 |
9.53 |
24.60 |
6.35 |
48.00 |
50.50 |
KLQ1ETS-1/2"XT1/2" |
24.60 |
13.00 |
9.53 |
24.60 |
9.53 |
50.00 |
53.40 |
KLQ1ETS-1/2"XT3/4" |
24.60 |
13.00 |
9.53 |
24.60 |
15.80 |
54.50 |
59.60 |
KLQ1ETS-1/2"XT1" |
24.60 |
13.00 |
9.53 |
24.60 |
22.20 |
60.00 |
70.00 |
KLQ1ETS-3/4"XT3/4" |
32.50 |
19.35 |
15.80 |
32.50 |
15.80 |
59.00 |
64.60 |
KLQ1ETS-3/4"XT1" |
32.50 |
19.35 |
15.80 |
32.50 |
22.20 |
62.00 |
73.00 |
KLQ1ETS-1"XT1/4" |
44.00 |
25.75 |
22.20 |
44.00 |
3.95 |
61.00 |
60.50 |
KLQIETS-1"XT3/4" |
44.00 |
25.75 |
22.20 |
44.00 |
15.80 |
67.50 |
70.60 |
KLQ1ETS-1"XT1" |
44.00 |
25.75 |
22.20 |
44.00 |
22.20 |
71.00 |
79.00 |
