Product Description
规格MODEL |

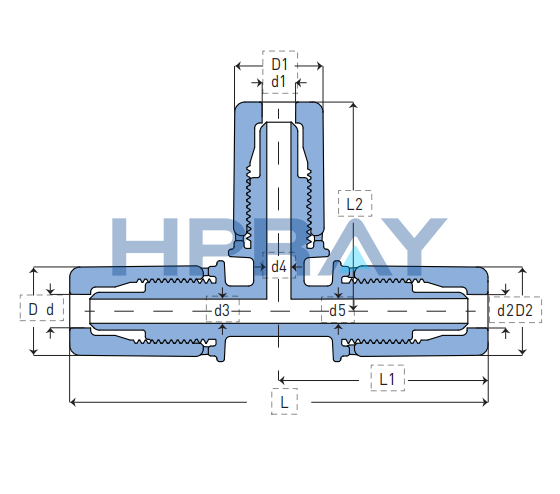

外形尺寸DIMENSIONS(mm) |
|||||||||||
D |
d |
D1 |
d1 |
D2 |
d2 |
d3 |
d4 |
d5 |
L1 |
L2 |
L |
|
KLQ1T-1/4'x1/4"x1/4 |
18.00 |
6.65 |
18.00 |
6.65 |
18.00 |
6.65 |
3.95 |
3.95 |
3.95 |
41.50 |
41.50 |
83.00 |
KLQ1T-3/8"x1/4"x1/4 |
21.70 |
9.80 |
18.00 |
6.65 |
18.00 |
6.65 |
6.35 |
3.95 |
3.95 |
42.50 |
43.50 |
85.00 |
KLQ1T-3/8'x3/8"x1/4° |
21.70 |
9.80 |
21.70 |
9.80 |
18.00 |
6.65 |
6.35 |
6.35 |
3.95 |
44.00 |
45.50 |
89.50 |
KLQ1T-3/8"x1/4"x3/8" |
21.70 |
9.80 |
18.00 |
6.65 |
21.70 |
9.80 |
6.35 |
3.95 |
6.35 |
43.50 |
44.00 |
87.00 |
KLQ1T-3/8'x3/8"x3/8° |
21.70 |
9.80 |
21.70 |
9.80 |
21.70 |
9.80 |
6.35 |
6.35 |
6.35 |
44.30 |
44.30 |
88.60 |
KLQ1T-3/8'x1/2"x3/8° |
21.70 |
9.80 |
24.60 |
13.00 |
21.70 |
9.80 |
6.35 |
9.53 |
6.35 |
46.00 |
48.00 |
92.00 |
KLQ1T-3/8'x3/4"x3/8° |
21.70 |
9.80 |
32.50 |
19.35 |
21.70 |
9.80 |
6.35 |
15.80 |
6.35 |
51.00 |
51.00 |
102.00 |
KLQ1T-1/2'x1/4"x1/4° |
24.60 |
13.00 |
18.00 |
6.65 |
18.00 |
6.65 |
9.53 |
3.95 |
3.95 |
42.50 |
45.00 |
88.50 |
KLQ1T-1/2'x1/4"x1/2" |
24.60 |
13.00 |
18.00 |
6.65 |
24.60 |
13.00 |
9.53 |
3.95 |
9.53 |
47.00 |
45.30 |
94.00 |
KLQ1T-1/2'x1/2"x1/4° |
24.60 |
13.00 |
24.60 |
13.00 |
18.00 |
6.65 |
9.53 |
9.53 |
3.95 |
45.50 |
49.50 |
95.00 |
KLQ1T-1/2'x1/2"x3/8" |
24.60 |
13.00 |
24.60 |
13.00 |
21.70 |
9.80 |
9.53 |
9.53 |
6.35 |
46.00 |
49.50 |
95.50 |
KLQ1T-1/2'x3/8"x3/8" |
24.60 |
13.00 |
21.70 |
9.80 |
21.70 |
9.80 |
9.53 |
6.35 |
6.35 |
45.30 |
47.00 |
94.00 |
KLQ1T-1/2'x3/8"x1/2 |
24.60 |
13.00 |
21.70 |
9.80 |
24.60 |
13.00 |
9.53 |
6.35 |
9.53 |
48.70 |
47.00 |
97.40 |
KLQ1T-1/2'x1/2"x1/2° |
24.60 |
13.00 |
24.60 |
13.00 |
24.60 |
13.00 |
9.53 |
9.53 |
9.53 |
49.30 |
49.30 |
98.60 |
KLQ1T-1/2'×3/4"x1/2 |
24.60 |
13.00 |
32.50 |
19.35 |
24.60 |
13.00 |
9.53 |
15.80 |
9.53 |
54.00 |
52.00 |
108.00 |
KLQ1T-3/4°x1/4"x3/4 ° |
32.50 |
19.35 |
18.00 |
G.05 |
32.50 |
19.35 |
15.80 |
3.95 |
15.80 |
49.00 |
49.20 |
98.00 |
KLQ1T-3/4°x3/8"x3/4 |
32.50 |
19.35 |
21.70 |
9.80 |
32.50 |
19.35 |
15.80 |
6.35 |
15.80 |
51.00 |
50.00 |
102.00 |
KLQ1T-3/4'x1/2"x1/4° |
32.50 |
19.35 |
24.60 |
13.00 |
18.00 |
6.65 |
15.80 |
9.53 |
3.95 |
51.50 |
54.50 |
104.50 |
KLQ1T-3/4'x1/2"x1/2° |
32.50 |
19.35 |
24.60 |
13.00 |
24.60 |
13.00 |
15.80 |
9.53 |
9.53 |
51.50 |
54.50 |
104.50 |
KLQ1T-3/4'x1/2"x3/4° |
3250 |
19.35 |
24.60 |
13.00 |
32.50 |
19.35 |
15.80 |
9.53 |
15.80 |
53.00 |
55.00 |
106.00 |
KLQ1T-3/4°x3/4"x3/8 ° |
32.50 |
19.35 |
3250 |
1935 |
2170 |
9.80 |
15.80 |
15.80 |
6.35 |
52.00 |
5600 |
108.00 |
KLQ1T-3/4'x3/4"x1/2" |
32.50 |
19.35 |
32.50 |
19.35 |
24.60 |
13.00 |
15.80 |
15.80 |
9.53 |
55.00 |
56.50 |
111.50 |
KLQ1T-3/4'x3/4°x3/4 ° |
32.50 |
19.35 |
32.50 |
19.35 |
32.50 |
19.35 |
15.80 |
15.80 |
15.80 |
57.00 |
57.00 |
114.00 |
KLQ1T-3/4*x1"x3/4° |
32.50 |
19.35 |
44.00 |
25.75 |
32.50 |
19.35 |
15.80 |
22.20 |
15.80 |
62.50 |
65.00 |
125.00 |
KLQ1T-1'x1/4"x1° |
44.00 |
25.75 |
18.00 |
6.65 |
44.00 |
25.75 |
22.20 |
3.95 |
22.20 |
59.50 |
56.00 |
119.00 |
KLQ1T-1*×3/8"x1" |
44.00 |
25.75 |
21.70 |
9.80 |
44.00 |
25.75 |
22.20 |
6.35 |
22.20 |
59.50 |
56.50 |
119.00 |
KLQ1T-1'x1/2"x1° |
44.00 |
25.75 |
24.60 |
13.00 |
44.00 |
25.75 |
22.20 |
9.53 |
22.20 |
61.50 |
61.00 |
123.00 |
KLQ1T-1*×3/4°x3/4° |
44.00 |
25.75 |
32.50 |
19.35 |
32.50 |
19.35 |
22.20 |
15.80 |
15.80 |
56.50 |
62.50 |
122.00 |
KLQ1T-1*×3/4"x1° |
44.00 |
25.75 |
32.50 |
19.35 |
44.00 |
25.75 |
22.20 |
15.80 |
22.20 |
65.50 |
63.00 |
131.00 |
KLQ1T-1'x1"x1/2" |
44.00 |
25.75 |
44.00 |
25.75 |
24.60 |
13.00 |
22.20 |
22.20 |
9.53 |
60.50 |
7150 |
132.00 |
KLQ1T-1'x1"×3/4° |
44.00 |
25.75 |
44.00 |
25.75 |
32.50 |
19.35 |
22.20 |
22.20 |
15.80 |
62.50 |
71.50 |
134.00 |
KLQ1T-1'x1"x1* |
44.00 |
25.75 |
44.00 |
25.75 |
44.00 |
25.75 |
22.20 |
22.20 |
22.20 |
73.50 |
73.50 |
147.00 |
