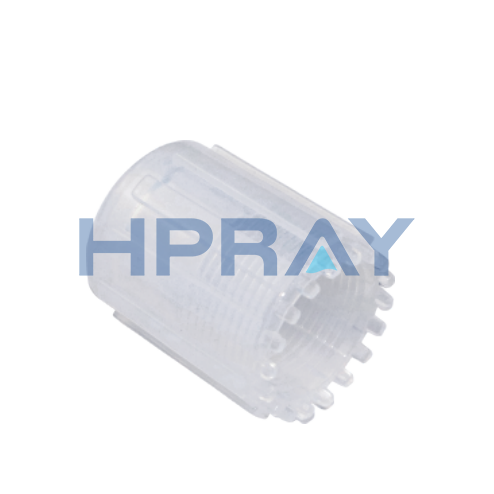

PFA Union Nut For Flared Type

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

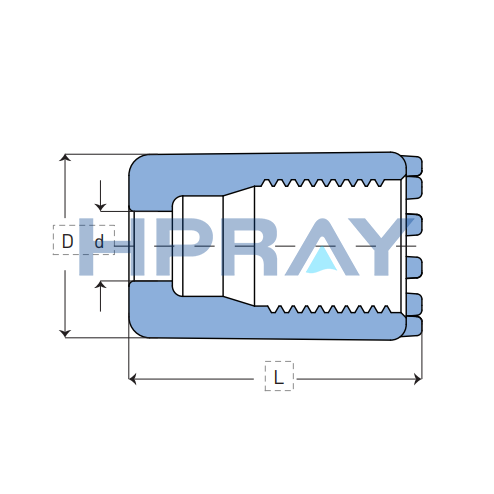

PFA Union Nut For Flared Type Specifications


规格MODEL

外形尺寸DIMENSIONS(mm)

D

d

L

KPUN-1/4"

18.00

6.65

26.50

KPUN-3/8"

21.70

9.80

29.15

KPUN-1/2"

24.60

13.00

32.55

KPUN-3/4"

32.50

19.35

32.50

KPUN-1°

44.00

25.75

42.50
