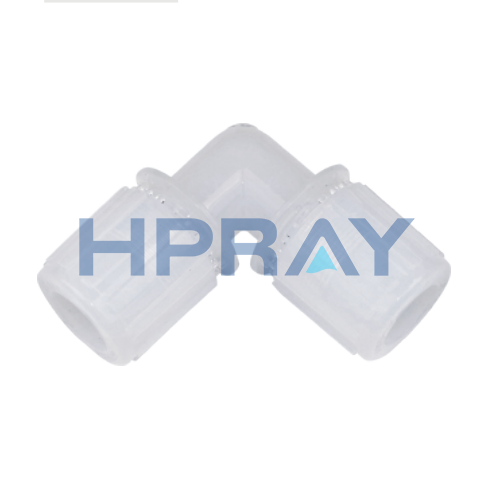

Product Description

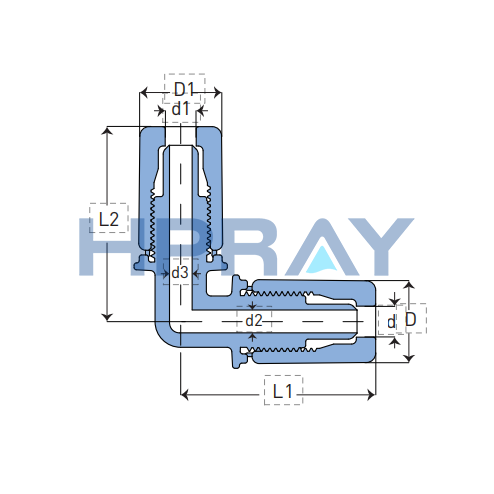

规格MODEL | 外形尺寸DIMENSIONS(mm) | |||||||
D | d | d2 | L1 | L2 | D1 | d1 | d3 | |
KLQ1E-1/4"X1/4" | 18.00 | 6.65 | 3.95 | 41.80 | 41.80 | 18.00 | 6.65 | 3.95 |
KLQ1E-3/8"X1/4° | 21.70 | 9.80 | 6.35 | 39.80 | 39.50 | 18.00 | 6.65 | 3.95 |
KLQ1E-3/8"X3/8" | 21.70 | 9.80 | 6.35 | 45.32 | 45.32 | 21.70 | 9.80 | 6.35 |
KLQ1E-1/2"X1/4" | 24.60 | 13.00 | 9.53 | 41.50 | 43.00 | 18.00 | 6.65 | 3.95 |
KLQ1E-1/2"X3/8" | 24.60 | 13.00 | 9.53 | 43.00 | 45.00 | 21.70 | 9.80 | 6.35 |
KLQ1E-1/2"X1/2" | 24.60 | 13.00 | 9.53 | 50.50 | 50.50 | 24.60 | 13.00 | 9.53 |
KLQ1E-3/4"X3/8 | 32.50 | 19.35 | 15.80 | 47.00 | 45.50 | 21.70 | 9.80 | 6.35 |
KLQ1E-3/4"X1/2" | 32.50 | 19.35 | 15.80 | 50.50 | 47.00 | 24.60 | 13.00 | 9.53 |
KLQ1E-3/4"X3/4° | 32.50 | 19.35 | 15.80 | 57.00 | 57.00 | 32.50 | 1935 | 15.80 |
KLQ1E-1"X1/2" | 44.00 | 25.75 | 22.20 | 57.00 | 55.00 | 24.60 | 1300 | 953 |
KLQ1E-1"X3/4" | 44.00 | 25.75 | 22.20 | 57.50 | 59.00 | 32.50 | 19.35 | 15.80 |
KLQ1E-1*X1" | 44.00 | 25.75 | 22.20 | 65.50 | 65.50 | 44.00 | 25.75 | 22.20 |
KLQIE-1-1/4"X1" | 56.30 | 32.00 | 28.00 | 79.10 | 78.20 | 45.80 | 25.80 | 22.20 |
KLQ1E-1-1/4" | 56.30 | 32.00 | 28.00 | 85.10 | 85.10 | 56.90 | 32.00 | 28.00 |
