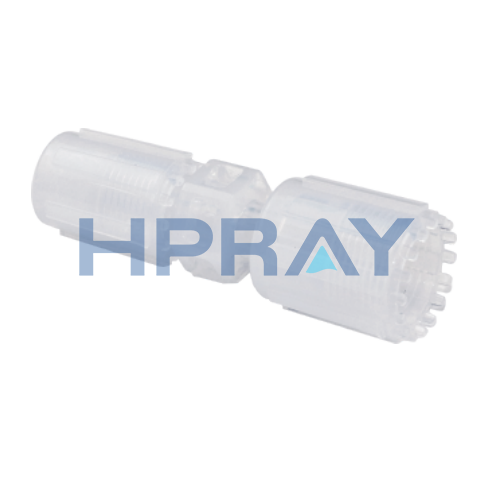

Product Description
规格MODEL |

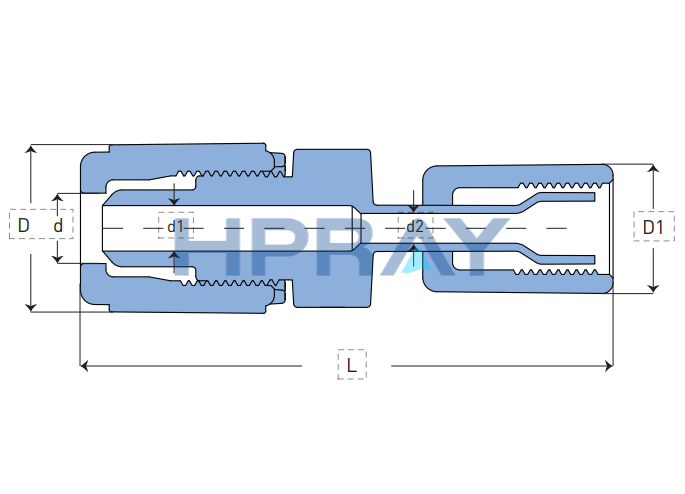

外形尺寸DIMENSIONS(mm) |
|||||
D |
d |
d1 |
D1 |
d2 |
L |
|
KLQ1UTS-1/4"×T3/8" |
18.00 |
6.65 |
3.95 |
18.00 |
6.35 |
75.00 |
KLQ1UTS-1/4"xT1/2" |
18.00 |
6.65 |
3.95 |
18.00 |
9.53 |
77.40 |
KLQ1UTS-1/4"xT3/4° |
18.00 |
6.65 |
3.95 |
18.00 |
15.80 |
84.00 |
KLQ1UTS-3/8"xT1/4° |
21.70 |
9.80 |
6.35 |
21.70 |
3.95 |
75.60 |
KLQ1UTS-3/8"xT1/2° |
21.70 |
9.80 |
6.35 |
21.70 |
9.53 |
79.40 |
KLQ1UTS-3/8"xT3/4° |
21.70 |
9.80 |
6.35 |
21.70 |
15.80 |
85.50 |
KLQ1UTS-1/2"×T3/8° |
24.60 |
13.00 |
9.53 |
24.60 |
6.35 |
81.30 |
KLQ1UTS-1/2"xT3/4" |
24.60 |
13.00 |
9.53 |
24.60 |
15.80 |
89.00 |
KLQ1UTS-3/4"xT1/2" |
32.50 |
19.35 |
1580 |
32.50 |
9.53 |
86.50 |
KLQ1UTS-3/4"×T1" |
32.50 |
19.35 |
15.80 |
32.50 |
22.20 |
101.00 |
KLQ1UTS-1"xT1/2" |
44.00 |
25.75 |
22.20 |
44.00 |
9.53 |
97.90 |
KLQ1UTS-1"xT3/4" |
44.00 |
25.75 |
22.20 |
44.00 |
15.80 |
104.50 |
KLQ1UTS-1°xT1-1/4° |
44.00 |
25.75 |
22.20 |
44.00 |
28.00 |
119.60 |
The space-savingend will shrinkin length after expanding,so it will be shorter than the theoretical length listed above. Fittings of allsizes are uniformly designed with a single-side 3mm reserve.
