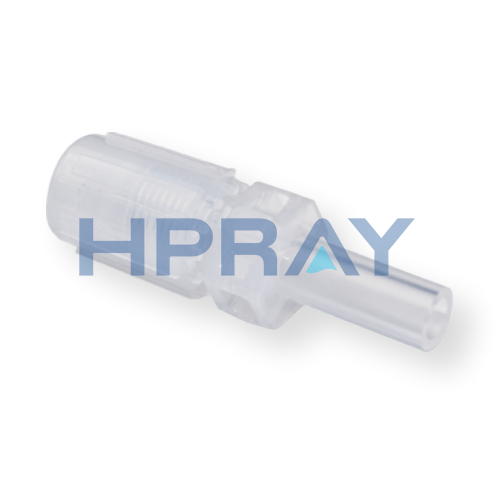

Product Description

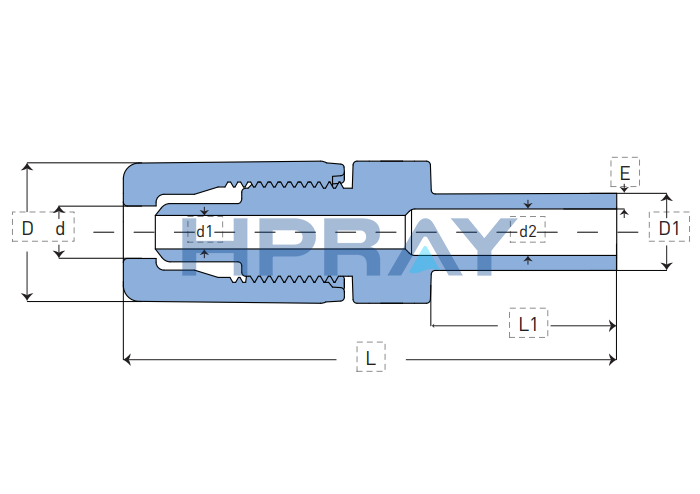

规格MODEL | 外形尺寸DIMENSIONS(mm) | |||||||
D | d | d1 | D1 | d2 | L | L1 | E | |
KLQ1UT-1/4"xT3/8" | 18.00 | 6.65 | 3.95 | 9.53 | 6.35 | 62.50 | 23.50 | 1.60 |
KLQ1UT-1/4"×T1/2" | 18.00 | 6.65 | 3.95 | 12.70 | 9.53 | 63.50 | 24.50 | 1.60 |
KLQ1UT-1/4"×T3/4" | 18.00 | 6.65 | 3.95 | 19.00 | 15.80 | 70.50 | 32.00 | 1.60 |
KLQ1UT-3/8"xT1/4" | 21.70 | 980 | 6.35 | 6.35 | 3.95 | 63.50 | 22.80 | 1.20 |
KLQ1UT-3/8"xT1/2" | 21.70 | 9.80 | 6.35 | 12.70 | 9.53 | 65.50 | 25.40 | 1.60 |
KLQ1UT-3/8"×T3/4" | 21.70 | 9.80 | 6.35 | 19.00 | 15.80 | 72.00 | 32.00 | 1.60 |
KLQ1UT-1/2"xT3/8" | 24.60 | 13.00 | 9.53 | 9.53 | 6.35 | 68.80 | 23.50 | 1.60 |
KLQ1UT-1/2"xT3/4" | 24.60 | 13.00 | 9.53 | 19.00 | 15.80 | 77.00 | 32.00 | 1.60 |
KLQ1UT-3/4"xT1/2" | 32.50 | 19.35 | 15.80 | 12.70 | 9.53 | 72.60 | 24.50 | 1.60 |
KLQ1UT-3/4°×T1" | 32.50 | 19.35 | 15.80 | 25.40 | 22.20 | 82.00 | 35.00 | 1.60 |
KLQ1UT-1"xT1/2 | 44.00 | 25.75 | 22.20 | 12.70 | 9.53 | 84.50 | 24.50 | 1.60 |
KLQ1UT-1"xT3/4° | 44.00 | 25.75 | 22.20 | 19.00 | 15.80 | 91.00 | 32.00 | 1.60 |
KLQIUT-1"×T1-1/4" | 44.00 | 25.75 | 22.20 | 31.80 | 28.00 | 100.70 | 42.20 | 1.90 |
