PFA Tee Space-Saving Flared Type

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

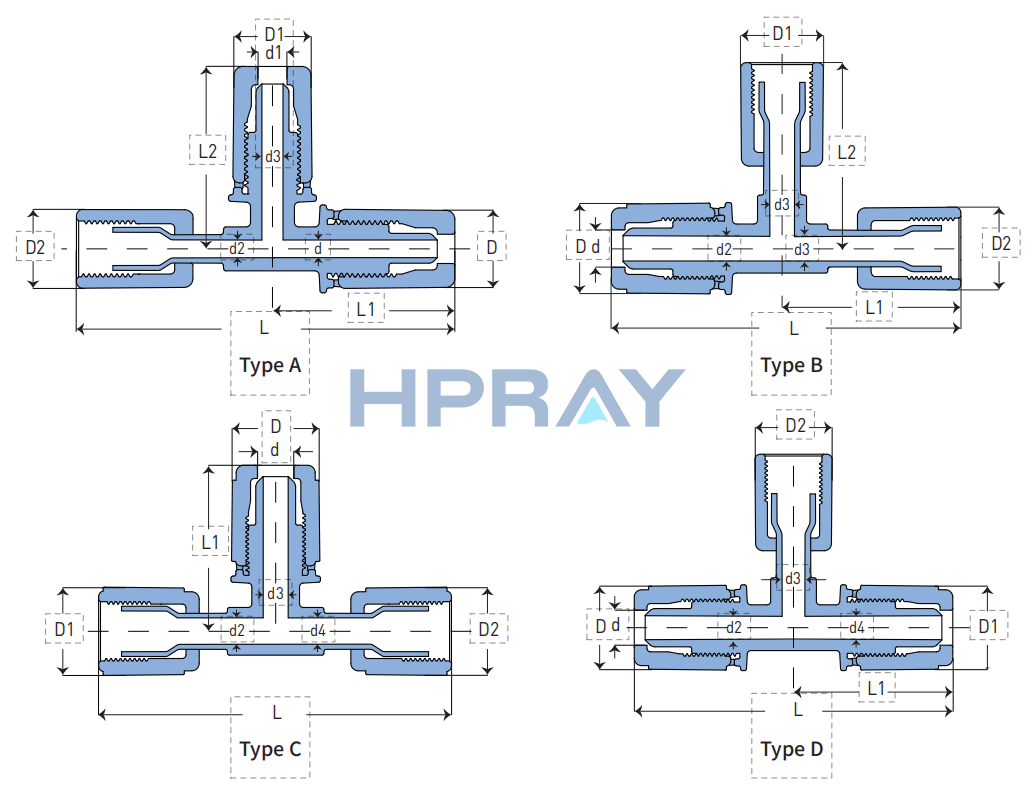

PFA Tee Space-Saving Flared Type Specifications


规格MODEL

外形尺寸DIMENSIONS(mm)

Type

D

d

D1

d1

D2

d2

d3

d4


L1

L2

KLQ1TTS-1/4"x1/4°xT1/4°

A

18.00

6.65

18.00

6.65

18.00

3.95

3.95

3.95

87.60

41.50

37.50

KLQ1TTS-3/8"xT1/4*xT3/8"

B

21.70

9.80

18.00

N/A

21.70

6.35

3.95

6.35

89.10

46.50

48.10

KLQ1TTS-3/8"*T3/8**3/8

D

21.70

9.80

21.70

9.80

21.70

6.35

6.35

6.35

89.10

44.60

50.00

KLQ1TTS-3/8"*1/4"*T3/8"

A

21.70

9.80

18.00

6.65

21.70

6.35

3.95

6.35

89.10

46.50

43.50

KLQ1TTS-3/8"x3/8"×T3/8°

A

21.70

9.80

21.70

9.80

21.70

6.35

6.35

6.35

94.00

49.50

44.50

KLQ1TTS-T3/8"x3/8"×T3/8

c

21.70

9.80

21.70

N/A

21.70

6.35

6.35

6.35

98.00

44.50

N/A

KLQ1TTS-3/8"xT3/8"xT3/8"

B

21.70

9.80

21.70

N/A

21.70

6.35

6.35

6.35

92.60

48.00

50.00

KLQ1TTS-1/2"*T3/4**1/2"

D

24.60

13.00

24.60

13.00

24.60

9.53

15.80

9.53

109.10

54.60

59.10

KLQ1TTS-3/4°x3/4°×T3/4

A

32.50

19.35

32.50

19.35

32.50

15.80

15.80

15.80

120.20

63.60

56.60

KLQ1TTS-3/4"x3/8"xT3/4°

A

32.50

19.35

21.70

9.80

32.50

15.80

6.35

15.80

108.20

57.60

50.00


The space-saving end will shrink in length after expanding,soit willbe shorter than the theoretical length listed above.
